Toshiba MG07ACA Enterprise Capacity SATA HDDs

Toshiba MG07ACA Enterprise Capacity SATA HDDs, featuring a 9-disk Helium-sealed design, provide up to 14TB of Conventional Magnetic Recording (CMR) capacity and 7200rpm performance.  The industry-standard 3.5" form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. The helium-sealed design of the MG07ACA HDDs reduces aerodynamic drag to deliver a lower operational power profile, helping to achieve Total Cost of Ownership (TCO) objectives for cloud-scale and software-defined data center infrastructure.

The massive 14TB and 12TB capacity of the MG07ACA Series is delivered using proven CMR/PRM recording technologies providing optimum compatibility and data reliability. Equipped with a SATA 6.0Gbit/s interface, the MG07ACA models integrate easily into standard 3.5" SATA drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business-critical servers and storage systems.

Features

  • 14TB and 12TB capacity models
  • Innovative 9-disk helium-sealed design for superior storage density
  • Industry-standard 3.5" (26.1mm) form factor
  • 7200rpm performance
  • SATA 6.0Gbit/s interface
  • Low operational power profile, providing excellent power efficiency (Watts per Terabyte) for better TCO
  • 550TB total transferred per year workload rating
  • 512e or 4Kn Advanced Format Sector Technology (512e Model) includes Toshiba Persistent Write Cache Technology for data-loss protection in sudden power-loss events
  • Sanitize Instant Erase (SIE) option available

Applications

  • Cloud-scale storage infrastructure
  • Software-defined data center infrastructure
  • File-based and object-based storage infrastructure
  • Mid-line and Near-line business-critical workloads
  • Tier 2 business-critical servers and storage systems

Specifications

  • A form factor of 3.5"
  • SATA 6.0Gbit/s interface
  • Buffer size of 256MiB
  • 7200rpm rotation speed
  • Acoustics (idle) of 20dB (typical)
  • Data transfer speed (sustained)
    • 14TB: 248MiB/s (typical)
    • 12TB: 242MiB/s (typical)
  • Power consumption (random read/write 4KB)
    • 14TB: 8.09W (typical)
    • 12TB: 7.83W (typical)
  • Power consumption (active idle)
    • 14TB: 4.53W (typical)
    • 12TB: 4.25W (typical)
  • MTTF of 2500K hours
  • 720g weight

Documents

Related Products

MG Family Enterprise HDDs

Toshiba MG Family Enterprise HDDs

A solution for the demands of more distributed storage in the cloud and on-premises applications.

Learn Moreabout Toshiba MG Family Enterprise HDDs View Productsrelated to Toshiba MG Family Enterprise HDDs

Mechanical Specifications

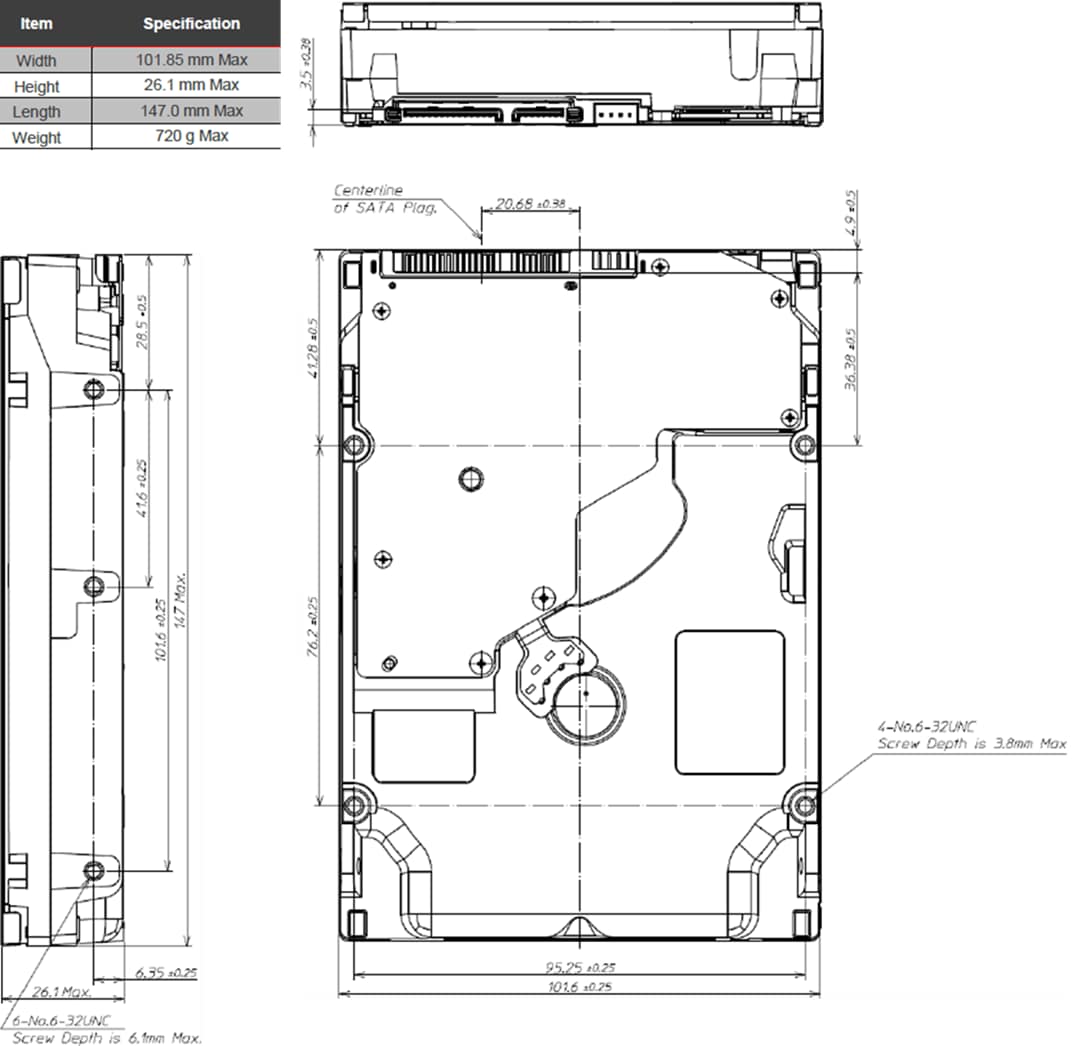

Mechanical Drawing - Toshiba MG07ACA Enterprise Capacity SATA HDDs
Published: 2020-05-06 | Updated: 2024-11-13
