Texas Instruments DLP4620SQ1EVM Evaluation Module (EVM)
Texas Instruments DLP4620SQ1EVM Evaluation Module (EVM) is a complete electronic subsystem designed to drive the DLP4620S-Q1 automotive chipset. The chipset comprises a 0.46” DMD (1358 x 566), the DLPC231-Q1 DMD controller, and the Texas Instruments TPS99000-Q1 PMIC. When combined with optics, RGB LEDs, and a photodiode, this evaluation module can be used to develop an automotive-grade DLP projector or picture-generation unit for applications such as head-up displays, transparent window displays, or other automotive display applications.
Features
- Complete DLP4620S-Q1 electronic subsystem
- It runs off a single +12V DC power rail
- HDMI and OpenLDI video inputs
- USB interface for communication and configuration
- Windows GUI for configuration and control
Applications
- Augmented reality head-up displays (AR HUD)
- Transparent window displays
- Adaptive driving beams, glare-free beam steering, reflective traffic sign and pedestrian dimming, symbol projection
Kit Contents

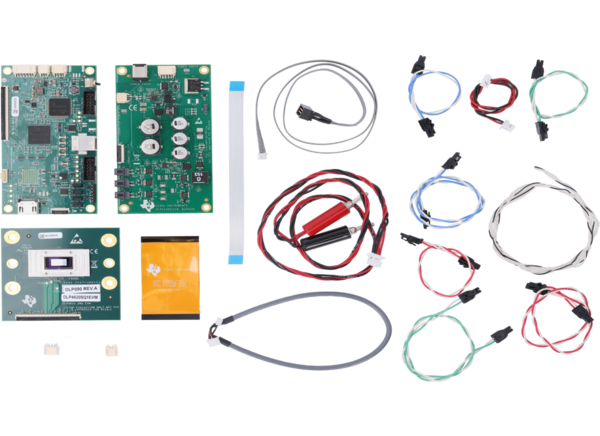

- DLPC231S-Q1 DMD controller board
- DLP4620S-Q1 DMD board
- LED driver board
- Required cables
Additional Resources
Related Products
Texas Instruments DLP4620S-Q1 0.46" Automotive DMD
Can provide a high-resolution, high-performance augmented reality head-up display (HUD).
Texas Instruments TPS99000x-Q1 System & Illumination Controller
Provides functions to support typical 5000:1 display dimming requirements for HUD applications.
Texas Instruments DLPC23x-Q1 DLP® Automotive DMD Controllers
Part of two DMD chipsets, the DLP5530-Q1 and DLP5531-Q1.
