Microchip Technology ATmega3209 Microcontrollers

Microchip Technology ATmega3209 Microcontrollers megaAVR^® 0-series uses the AVR^® processor with hardware multiplier and runs up to 20MHz. These MCUs include memories of 6KB SRAM, 256bytes of EEPROM, and a wide range of flash size up to 48KB. The ATmega3209 MCUs use the latest technology with a flexible and low-power architecture, including Event System and SleepWalking, accurate analog features, and advanced peripherals.

Features

AVR^® CPU
- Single-cycle I/O access
- Two-level interrupt controller
- Two-cycle hardware multiplier
System
- Power-on Reset (POR) circuit
- Brown-out Detection (BOD)
- Clock options
  - 20MHz low-power internal oscillator with the fuse-protected frequency setting
  - 32.768kHz Ultra Low Power (ULP) internal oscillator
  - 32.768kHz external crystal oscillator
  - External clock input
- Single-pin Unified Program Debug Interface (UPDI)
  - Three sleep modes
    - Idle with all peripherals running and mode for an immediate wake-up time
    - Standby
      - Configurable operation of selected peripherals
      - SleepWalking peripherals
    - Power down with limited wake-up functionality

Memories
- Up to 48KB In-system self-programmable flash memory
- 256B EEPROM
- Up to 6KB SRAM
- Write/erase endurance
- Flash 10,000 cycles
- EEPROM 100,000 cycles
- Data retention of 20 years at 85°C
I/O and Packages
- 41 programmable I/O lines

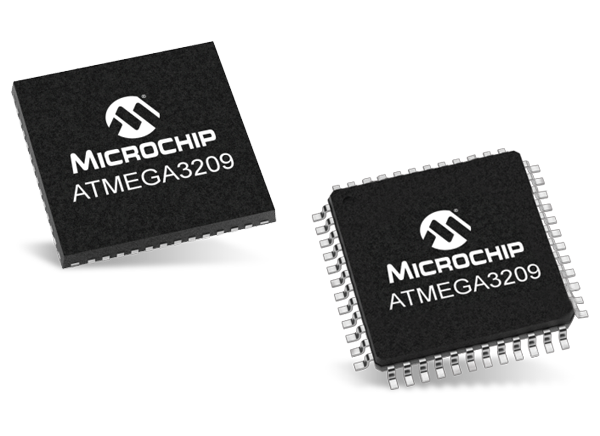

- 48-pin UQFN 6 x 6 and TQFP 7 x 7
-40°C to 125°C temperature range
Speed grades
- 0-5MHz @ 1.8V to 5.5V
- 0-10MHz @ 2.7V to 5.5V
- 0-20MHz @ 4.5V to 5.5V and -40°C to 105°C
