CLP-107-02-F-D-A

Name: Samtec CLP-107-02-F-D-A
Brand: Samtec
SKU: 200-CLP10702FDA
Price: 2.97 USD
Availability: InStock

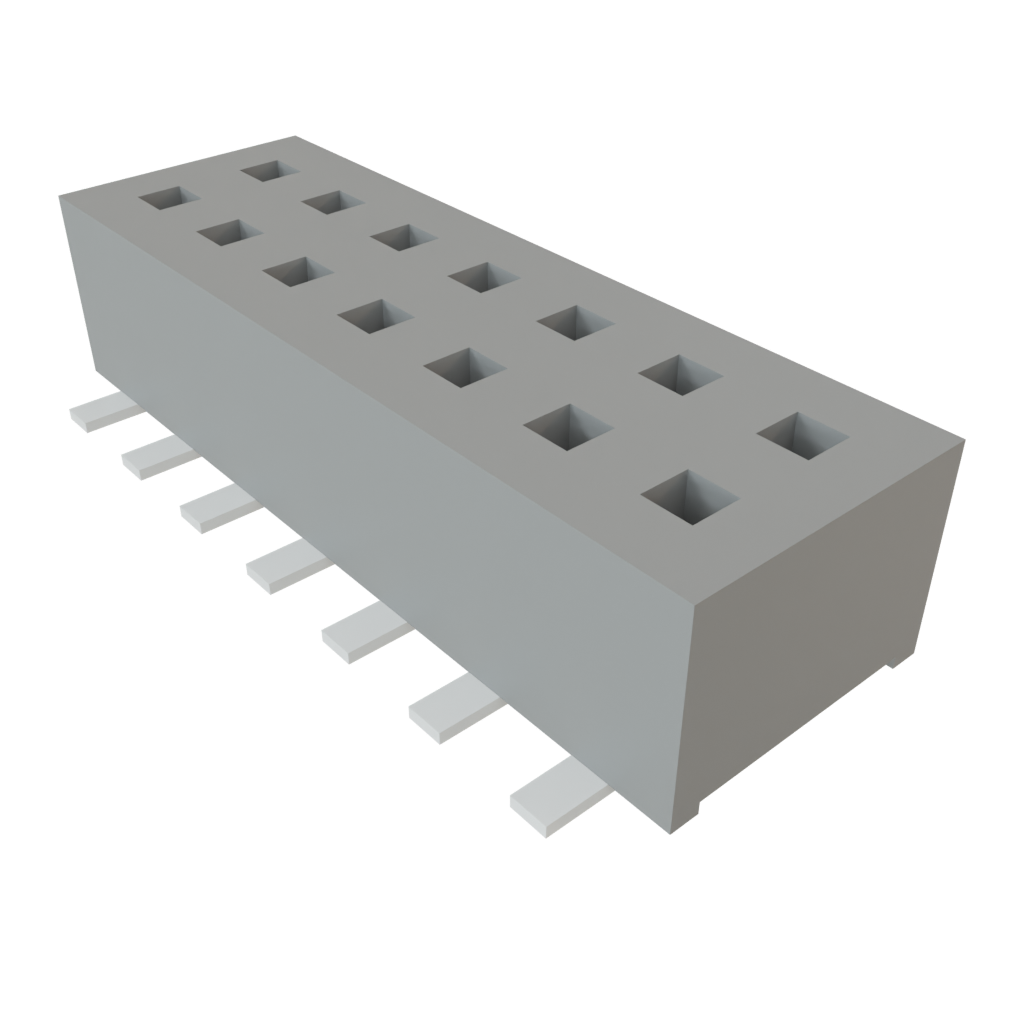

Images are for reference only
See Product Specifications

Mouser #:

200-CLP10702FDA

Mfr. #:

CLP-107-02-F-D-A

Mfr.:

Samtec

Description:

Headers & Wire Housings Low Profile Dual-Wipe Socket

Datasheet:

CLP-107-02-F-D-A Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

More Information

Learn more about Samtec CLP-107-02-F-D-A

In Stock: 540

Stock:: 540 Can Ship Immediately

An unexpected error occurred. Please try again later.
Factory Lead-Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$2.97	$2.97
	$2.51	$125.50
	$2.11	$211.00
	$1.72	$959.76
	$1.50	$1,581.00
	$1.28	$2,618.88
	$1.09	$5,473.98
	$0.895	$8,989.38

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Type:	Socket
Number of Positions:	14 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	CLP
Tradename:	Tiger Claw
Application:	Board-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Current Rating:	3.4 A
Flammability Rating:	UL 94 V-0
Housing Color:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	62
Subcategory:	Headers & Wire Housings
Voltage Rating:	280 VAC, 395 VDC
Unit Weight:	0.002005 oz

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

USHTS:: 8536694040
CNHTS:: 8536901100
CAHTS:: 8536690020
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Tiger Claw™ CLM, CLP & CLT Dual Wipe Socket Strips

Samtec Tiger Claw™ Dual Wipe Socket Strips are available in 1.00mm, 1.27mm, and 2.00mm pitches and feature a low-profile Tiger Claw contact system. These rugged sockets are insulated with black liquid crystal polymer and withstand 100 mating cycles. Samtec Tiger Claw socket strips have a -55°C to +125°C operating temperature and are RoHS compliant.
