STTH30M06SPF

Name: STMicroelectronics STTH30M06SPF
Brand: STMicroelectronics
SKU: 511-STTH30M06SPF
Price: 3.23 USD
Availability: InStock

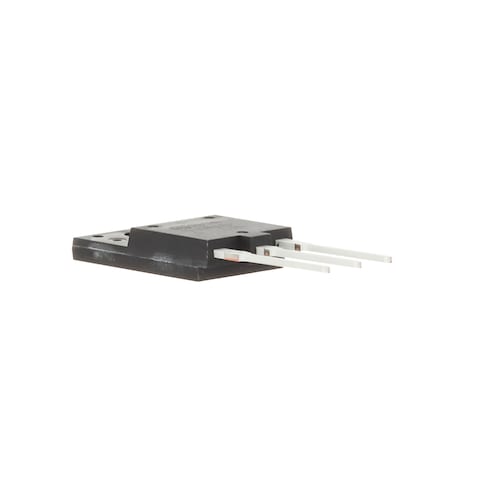

Images are for reference only
See Product Specifications

Mouser #:

511-STTH30M06SPF

Mfr. #:

STTH30M06SPF

Mfr.:

STMicroelectronics

Description:

Small Signal Switching Diodes 600V, 30A, Ultrafast diode

Complete Your Design

Datasheet:

STTH30M06SPF Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

More Information

Learn more about STMicroelectronics STTH30M06SPF

In Stock: 1,118

Stock:: 1,118 Can Ship Immediately

An unexpected error occurred. Please try again later.
Factory Lead-Time:: 25 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

A tariff of 10 % may be applied if shipping to the United States.

Qty.	Unit Price	Ext. Price
	$3.23	$3.23
	$1.40	$14.00
	$1.35	$135.00
	$1.16	$696.00
	$1.10	$1,320.00
	$1.04	$2,808.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Small Signal Switching Diodes
RoHS:
Product:	General Purpose Diodes
Mounting Style:	Through Hole
Peak Reverse Voltage:	600 V
Max Surge Current:	170 A
If - Forward Current:	30 A
Configuration:	Single
Recovery Time:	25 ns
Vf - Forward Voltage:	1.7 V
Ir - Reverse Current:	60 uA
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 175 C
Packaging:	Tube
Brand:	STMicroelectronics
Product Type:	Diodes - General Purpose, Power, Switching
Factory Pack Quantity:	300
Subcategory:	Diodes & Rectifiers
Unit Weight:	0.183425 oz

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STTH30M06SPF Datasheet (PDF)

PCN

This functionality requires JavaScript to be enabled.

USHTS:: 8541100080
CNHTS:: 8541100000
CAHTS:: 8541100090
TARIC:: 8541100000
ECCN:: EAR99

Standard Products

STMicroelectronics Standard Products are a broad range of industry-standard and drop-in replacements for the most popular general-purpose analog ICs, discretes, and serial EEPROMs. The Standard Products are manufactured to the highest quality standards with many AECQ-qualified for automotive applications. A comprehensive set of STMicroelectronics design aids, including SPICE, IBIS models, and simulation tools, is available to make adding to a design-in easy.

Turbo 2 Ultrafast Recovery Diodes

STMicroelectronics Ultrafast Turbo 2 Rectifiers are ultrafast diodes available from 200V to 600V with various VF/Trr trade-offs to achieve the best performance for any application. These devices are ideal for PFC and solar inverters applications. They guarantee the same efficiency as SiC diodes in a conventional PFC, for a much cheaper application cost. All devices are rated up to 175°C operating junction temperature, as a result of the reduced leakage currents.
