TST-136-02-G-D

Name: Samtec TST-136-02-G-D
Brand: Samtec
SKU: 200-TST13602GD
Price: 10.53 USD
Availability: InStock

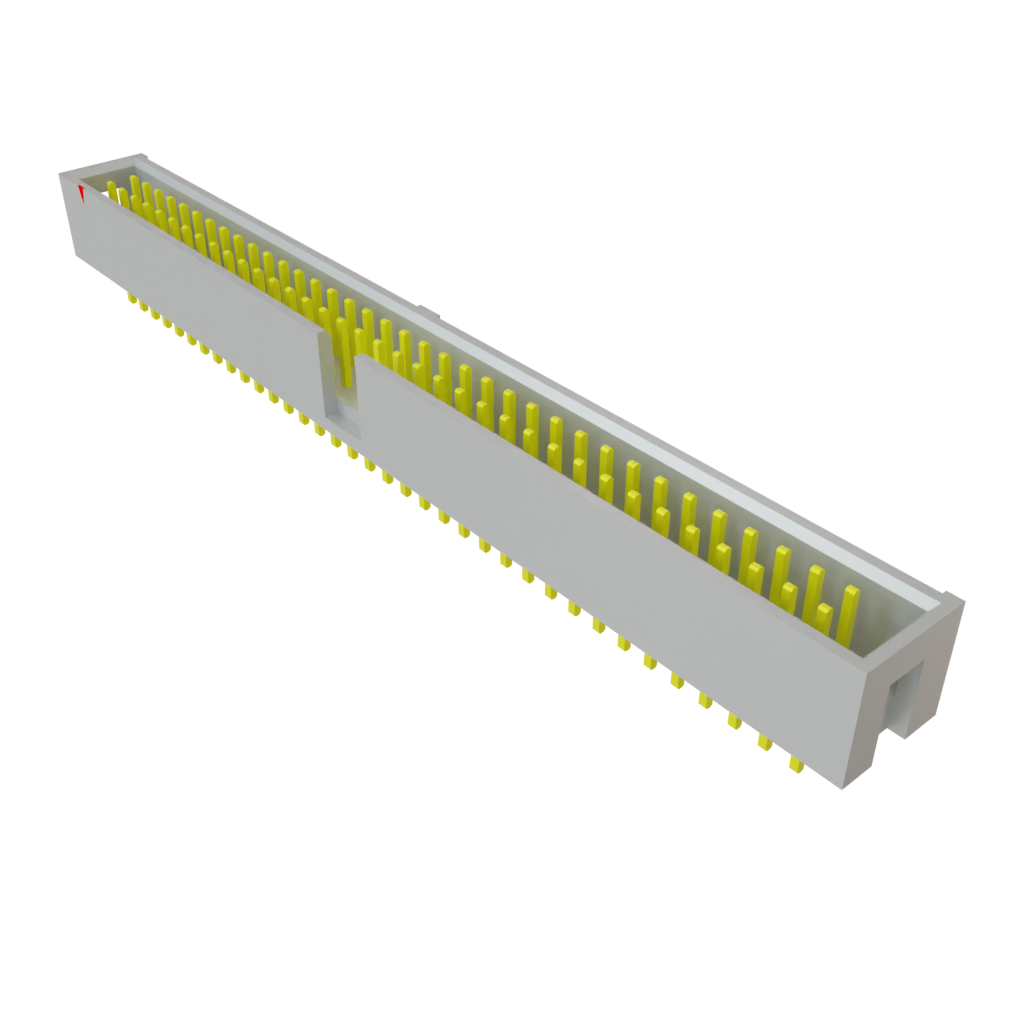

Images are for reference only
See Product Specifications

Mouser #:

200-TST13602GD

Mfr. #:

TST-136-02-G-D

Mfr.:

Samtec

Description:

Headers & Wire Housings Shrouded PCB Headers

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	72 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	6.35 mm (0.25 in)
Series:	TST
Tradename:	Flex Stack
Application:	Board-to-Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Phosphor Bronze
Current Rating:	3.4 A
Flammability Rating:	UL 94 V-0
Housing Color:	Black
Housing Material:	Polyester
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Unit Weight:	0.316704 oz

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

TST-136-02-G-D Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

Compliance Codes

USHTS:: 8536694040
CNHTS:: 8538900000
CAHTS:: 8536690020
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: United States
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.
