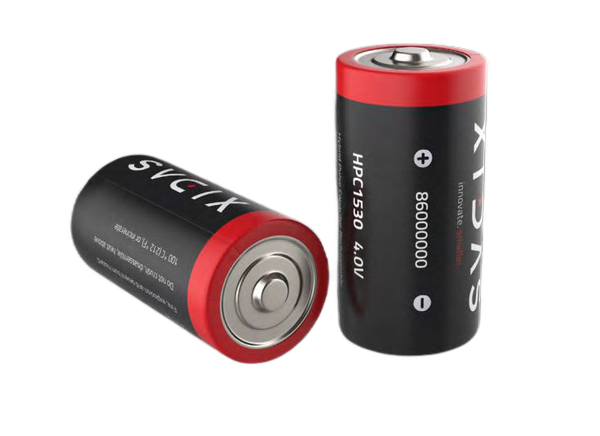

Xidas RHB-1530 Rechargeable High-Pulse Battery
Xidas RHB-1530 Rechargeable High-Pulse Battery is an integrated pulse capacitor and a rechargeable lithium battery that provides large pulse discharge capability under extreme temperature from -40°C to +85°C. With a low trickle-charge current requirement and a high energy capacity, the RHB-1530 is optimized for use with energy harvesting devices for wireless IoT applications.
The Xidas RHB-1530 is designed to work in conjunction with the EHM-UNIV-1 Energy Harvesting Module and VEG Vibration-Based Energy-Harvesting Generator.
Features
- Integrated pulse capacitor and rechargeable lithium battery
- High 3.6V to 4.0V working voltage
- 240mAH
- No initial voltage delay
- Stable working voltage against high pulse currents
- Wide -40°C to +85°C operating temperature range
Applications
- Machine condition monitoring
- Smart buildings
- Smart agriculture
- Smart utilities
- Wireless sensor networks
- Cold chain management
- Smart healthcare
- Smart Cities
Specifications
- Nominal voltage: 4V
- Capacity at full charge: 240mAh @ 4.10V
- Nominal discharge current: 125mA
- Maximum continuous discharge current: 750mA
- Pulse current capability: 3000mA
- Discharge end voltage: 2.5V
- Maximum charge voltage: 4.1V
- Nominal charge current: 50mA
- Temperature range: -40°C to +85°C
- Cell impedance @ 1kHz, RT: 120mΩ maximum
- Nominal energy: 0.6Wh maximum
- Height: 30.0mm
- Diameter: 15.1mm
- Weight: 10.0g
