Molex Brad M12 Power L-Code Connector Systems

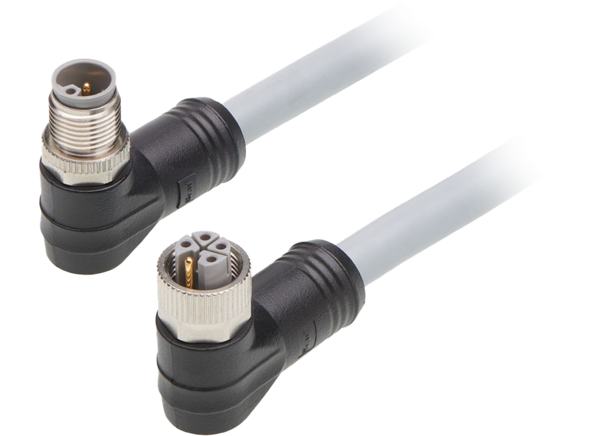

Molex Brad M12 Power L-Code Connector Systems deliver up to 16A current per pin at 63V AC or DC. These M12 connector systems feature a -25°C to 85°C operating temperature range, >108 Ohms insulation resistance, 2.50mm2 thick wires, and <5 milliohms contact resistance. These M12 power L-code connector systems provide an IP67-sealed interface and meet PROFIBUS and PROFINET International (PI) standards for PROFINET systems. Typical applications include power supplies of decentralized I/O, field-bus-controlled I/O boxes, small server/DC motors and drives, machine tools, presses, molding, stamping, and automotive plants.
Features
- Delivers four times the power of standard M12 connectors
- Allows installations over a longer distance and reduced voltage drop due to 2.50mm2 thick wires
- Enhances operator safety by eliminating the chance of electrical shock due to exposed pins
- L-code mating interface
- 4 or 5 poles
- IP67-sealed interface:
- Includes a dust-proof connector that can be temporarily submerged in up to 1 meter of water
- Provides a sealed connection ideal for use in harsh and wet industrial environments
- RoHS compliance and 61076-2-111 IEC standard
Specifications
- 63V (Pollution degree 3) maximum voltage
- 12A Per pin (1.50mm² wires) and 16A per pin (2.50mm² wires) maximum current
- <5mΩ Contact resistance
- >108Ω Insulation resistance
- -25°C to 85°C Operating temperature range
Application Example Diagram
Additional Resources
Related Products
Molex Brad Connectors
Simplifies installation and provides reliable performance in industrial environments.
Molex Environmentally Sealed Connectors
Provides an ideal interconnect solution for heavy-duty and harsh-environment applications.
