Vishay / BC Components NTCLP450E3104H Pipe Type NTC Thermistor Sensors

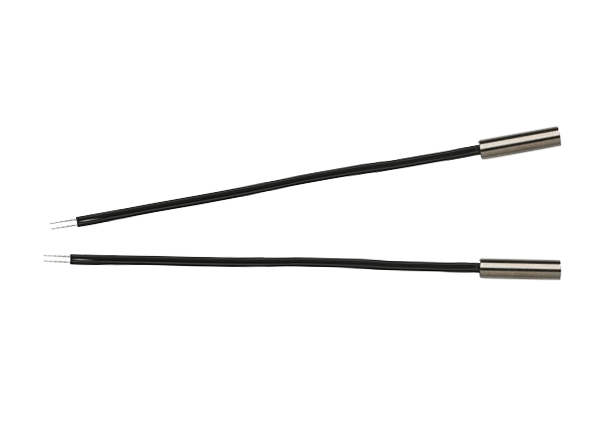

Vishay / BC Components NTCLP450E3104H Pipe Type NTC Thermistor Sensors are negative temperature coefficient thermistors. NTCLP450E3104H consists of a mini-chip soldered to a twin stranded tin-plated copper AWG #30, +105°C resistant, PVC (UL2651) wire and potted in a nickel-plated brass pipe. The terminations are tin-solder-dipped. Vishay / BC Components NTCLP450E3104H NTC Thermistor Sensors feature 100KΩ resistance value at +25°C, ±3% tolerance, and 1500VRMS minimum dielectric withstanding voltage. The series operates over a -40°C to +105°C operating temperature range and is ideal for use in air-conditioning sensors, evaporator sensors, industrial sensors, and heating systems sensors.
Features
- Fast time response vs. industry standards
- High stability
- High resistance to humidity
- Accurate over wide temperature range
- High encapsulating strength between PVC wire and encapsulated lacquer
Applications
- Air-conditioning sensors
- Evaporator sensors
- Industrial sensors
- Heating systems sensors
Specifications
- 100KΩ resistance value at +25°C
- ±3% tolerance
- 1500VRMS minimum dielectric withstanding voltage
- 1.6g mass
- 250mW maximum power dissipation at +55°C
- -40°C to +105°C operating temperature range
