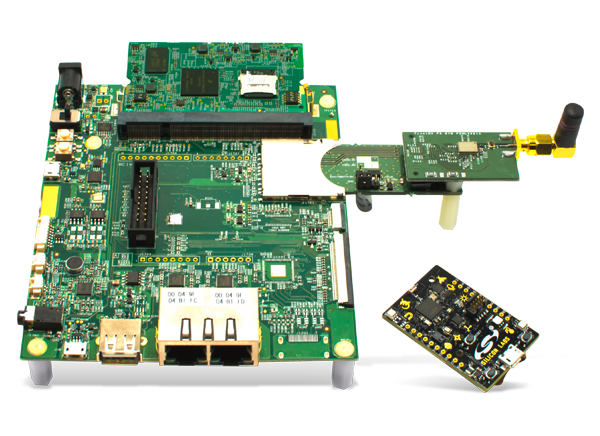

The UrsaCloud UltraLite Development Kit includes the NXP Semiconductors iMX6UL Development Board (MCIMX6UL-EVKB), the Silicon Labs Thunderboard Sense 2 Sensor Board (SLTB004A), and a Murata Wi-Fi® LAN + Bluetooth® Module (LBEE5KL1DX-TEMP-DS-SD). Also included is a portable router pre-configured to communicate with the NXP Board. On power up, the UrsaLeo software connects the NXP Board to the Thunderboard Sense 2 Sensor Board and collects data on the 10x Sensors over a BLUETOOTH® connection. The UrsaCloud UltraLite Kit processes, encrypts, and transmits the data via a portable router to the Google Cloud, where it is displayed on a pre-configured dashboard.
Sensors included in the UrsaCloud UltraLite Development Kit are Temperature, Humidity, Pressure, Ambient Light, UV Light, 3-axis Gyroscope, Microphone, Air Quality, Air Volatile Organic Compound Levels, and Magnetic Field Strength.
