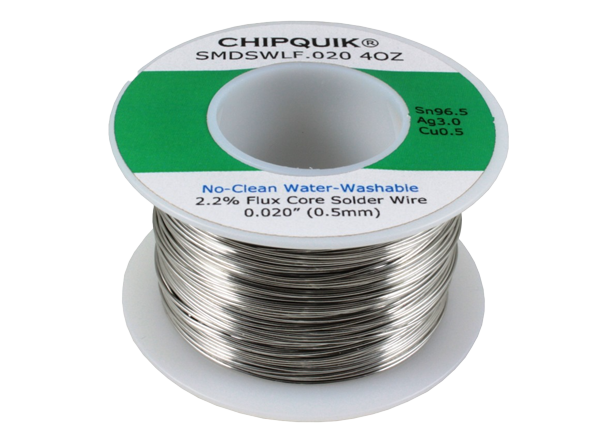

Chip Quik Solder Wires

Chip Quik Solder Wires feature an extended melting point range from 72°C to 1,064°C. These solder wires offer diameters ranging from 0.02mm to 0.4mm. The solder wires are recommended to be stored in a non-corrosive and dry environment. These solder wires are lead-free, RoHS 3 compliant, and REACH compliant.

Specifications

CQB-AU100-20um:
- 1,064°C (1,947°F) melting point
- Spool packaging
- 20µm diameter
- 100m length
- >12 months shelf life
- 4N (>99.99%) high-purity gold
SMDIN100-0.4mm:
- 2.7N/mm² (at 20°C) tensile strength
- 0.016” (0.4mm) wire diameter
- 157°C (315°F) melting point
- Spool packaging
- >60 months shelf life
SMDIN66.3BI33.7:
- 0.031” (0.8mm) wire diameter
- 72°C (162°F) melting point
- Spool packaging
- >60 months shelf life

SMDSN60BI40:
- 0.031” (0.8mm) wire diameter
- 8.2g/cc density
- 138°C to 170°C (281°F to 338°F) melting point range
- Spool packaging
- >60 months shelf life
SMDSN90AU10-2FT:
- 0.016” (0.4mm) wire diameter
- 217°C (423°F) melting point
- Spool packaging
- >60 months shelf life
SMDSWLTLFP16:
- 0.030” (0.762mm) wire diameter
- 138°C (281°F) melting point
- Tube packaging
- >60 months shelf life
