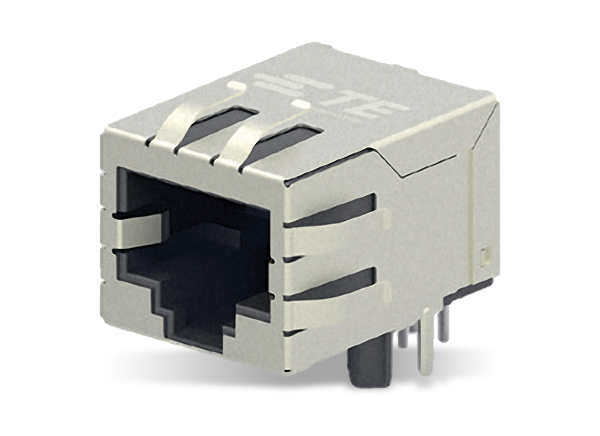

TE Connectivity Industrial RJ45 Jacks with Integrated Magnetics

TE Connectivity's Industrial RJ45 Jacks with Integrated Magnetics offers a highly integrated connectivity solution. The jack integrates magnetics for improved EMI noise shielding, allowing for more reliable connections. Features include improved corrosion resistance, an extended temperature range, and a long lifetime that meet the requirements for industrial environments. Applications include industrial computers, hubs, routers, and wireless access points.

Features

  • The standardized RJ45 jack portfolio with integrated magnetics with 1x1 straight and R/A, 1x2, 2x1 form factors addresses many of the industrial applications
  • Integrated magnetics reduces the (analog) design efforts required by the customer
  • Thicker gold plating (30μ" over 50μ" nickel) improves corrosion resistance reducing equipment electrical problems over lifetime
  • TE’s products (260°C reflow capable) fit industrial assembly/solder processes without the need for an extra assembly/solder step
  • Extended temperature range addresses industrial equipment requirements where standard temperature (0 ~ 70°C) range is too limited
  • Offering standardized Tape-and-Reel or Tray packing for fully automated or manual assembly process

Specifications

  • 10 / 100 Base-T Ethernet, 1 Gbps
  • Dielectric Withstanding Voltage: 2250V DC
  • UL 94 V-0
  • IEC 60603-7-51 for 1 Gbps
  • IEC 60603-7-5 for 10 / 100 Mbps
  • Extended temperature. range -40°C ~ +85°C

Applications

  • All industrial applications requiring Ethernet
  • All industrial equipment with RJ45 connectivity
  • Industry Computers
  • Hubs
  • Routers
  • Wireless access points
  • PLC’s
  • Switches
  • All Ethernet enabled equipment

Videos

Related Products

Discrete Magnetics for Industrial Ethernet

TE Connectivity Discrete Magnetics for Industrial Ethernet

Design flexibility for Ethernet interfaces improving EMI and/or overvoltage characteristics.

Learn Moreabout TE Connectivity Discrete Magnetics for Industrial Ethernet View Productsrelated to TE Connectivity Discrete Magnetics for Industrial Ethernet
Ethernet Jacks with Integrated Magnetics & PoE

TE Connectivity Ethernet Jacks with Integrated Magnetics & PoE

Offers a 2250VDC dielectric rating, 750 mating cycles, and supports up to 25.5W of power per port.

Learn Moreabout TE Connectivity Ethernet Jacks with Integrated Magnetics & PoE View Productsrelated to TE Connectivity Ethernet Jacks with Integrated Magnetics & PoE
Published: 2017-06-30 | Updated: 2022-07-14
