TE Connectivity / Measurement Specialties MEAS Weather Shield Development Kit
TE Connectivity's (TE) Measurement Specialties MEAS Weather Shield Development Kit provides the necessary hardware to interface the HTU21D digital relative humidity sensor, MS5637 digital barometric pressure sensor, TSYS01 digital temperature sensor, MS8607 digital relative humidity and digital pressure sensor, and TSD305-1C55 digital thermopile sensor to any system that utilizes Arduino compatible expansion ports configurable for I2C communication. TE's MEAS Weather Shield Development Kit includes 64 plug hole pads that can be used for soldering external devices, then plug on the motherboard for testing.
Features
- Provides the necessary hardware to interface sensors to any system that utilizes Arduino compatible expansion ports configurable for I2C communication
- Includes HTU21D digital relative humidity sensor, MS5637 digital barometric pressure sensor, TSYS01 digital temperature sensor, MS8607 digital relative humidity and digital pressure sensor, and TSD305-1C55 digital thermopile sensor
- 64 plug hole pads that can be used for soldering external devices, then plug on the motherboard for testing5

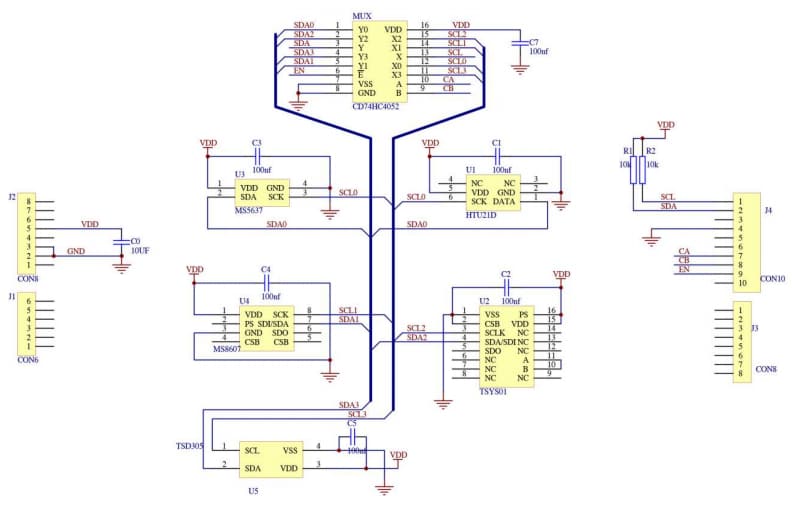

Schematic
On the Board
TE Connectivity / Measurement Specialties HTU21D Digital Relative Humidity Sensor
Dedicated humidity and temperature plug and play transducers for OEM applications
TE Connectivity / Measurement Specialties MS5637 Barometric Pressure Sensor
Optimized for altimeter and barometer applications in Smart-phones and Tablet PCs.
TE Connectivity / Measurement Specialties MS8607-02BA01 PHT Combination Sensor
Integrated pressure, humidity, and temperature sensor, 5mm x 3mm x 1mm3 package, high-resolution.
TE Connectivity / Measurement Specialties TSYS01 Digital Temperature Sensor
Factory calibration coefficients provide highly accurate temperature information.
Related Dev Board
Arduino Uno Microcontroller Board
Development board based on Atmel ATmega328 MCU.
