TE Connectivity M12 PG Clamps
TE Connectivity M12 PG Clamps are a cable-to-cable connector system available for American Wire Guage (AWG) 20 and 22. The M12 shell-type connectors are made up of metal and feature low fire hazard thermoplastic insulation. These connectors are gold-plated and built with polyamide housing material. The M12 PG clamps operate at a temperature range of -40ºC to 85ºC and have a current rating of 4A.
Features
- Housing accepts wire ranges from AWG 20 to 22
- Operating temperature ranges from -40°C to 85°C without cable boot
- Operating temperature ranges from -30°C to 85°C with cable boot
- Up to 4A current rating
- Up to 10GB/s data transmission rate
- IP67 rating
- Secure 360° EMI/RFI shielding
- Safe cable shield transfer to device connector without interruption from vibration or shock
- Effective 360° EMI/RFI shielding achieved by full metal housing

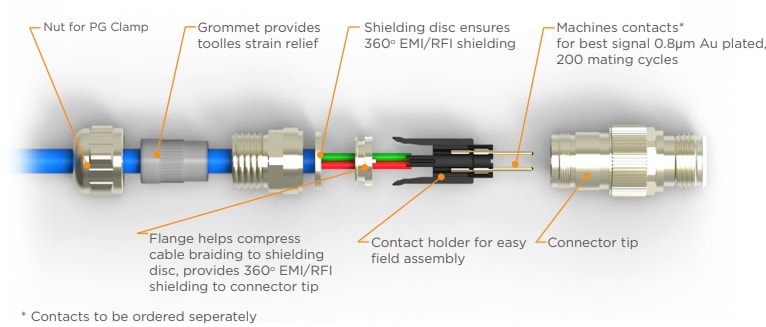

M12 PG Call-Outs
