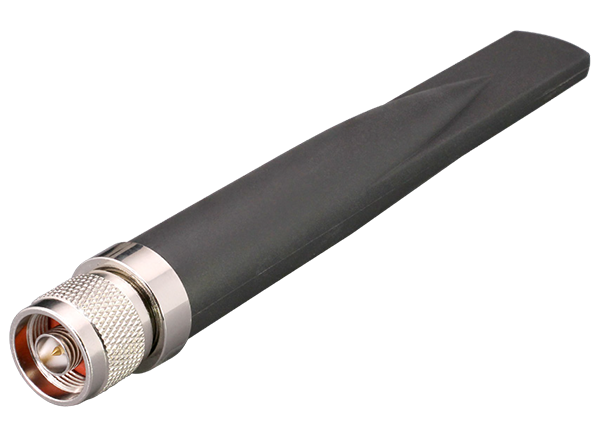

TE Connectivity / Linx Technologies ANT-W63-IPW3-NP WiFi 7/6/6E Outdoor Whip Antenna

TE Connectivity / Linx Technologies ANT-W63-IPW3-NP WiFi 7/6/6E Outdoor Whip Antenna is designed for 2.4GHz, 5GHz, and 6GHz bands supporting WiFi 7, WiFi 6, and WiFi 6E. The TE Connectivity / Linx Technologies ANT-W63-IPW3-NP provides a ground plane independent dipole antenna solution that mounts to metallic and non-metallic surfaces. The antenna housing is UV-stabilized ABS and connects using an N plug (male pin) connector.

Features

Performance at 5.15GHz to 5.85GHz
- VSWR ≤ 2.2
- Peak gain 7.2dBi
- Efficiency 66%
Performance at 5.925GHz to 7.125GHz
- VSWR ≤ 2.9
- Peak gain 4.1dBi
- Efficiency 52%

Enhanced heat and chemical-resistant UV-stabilized antenna housing material
IP67 rated
N plug (male pin) connector

Applications

WiFi/WLAN coverage
- WiFi 7 (802.11be)
- WiFi 6E (802.11ax)
- WiFi 6 (802.11ax)
- WiFi 5 (802.11ac)
- WiFi 4 (802.11n)
- 802.11b/g
2.4GHz ISM applications
- Bluetooth®
- ZigBee®
