TDK 12V & 48V Inverter Applications in Range of 1kW
TDK 12V and 48V Inverter Applications in Range of 1kW cover automotive components such as power steering, engine fans, climate compressors, E-chargers, and more. The TDK product portfolio for these inverter applications includes aluminum capacitors, film capacitors, and multilayer ceramic capacitors (MLCCs).
Application Range

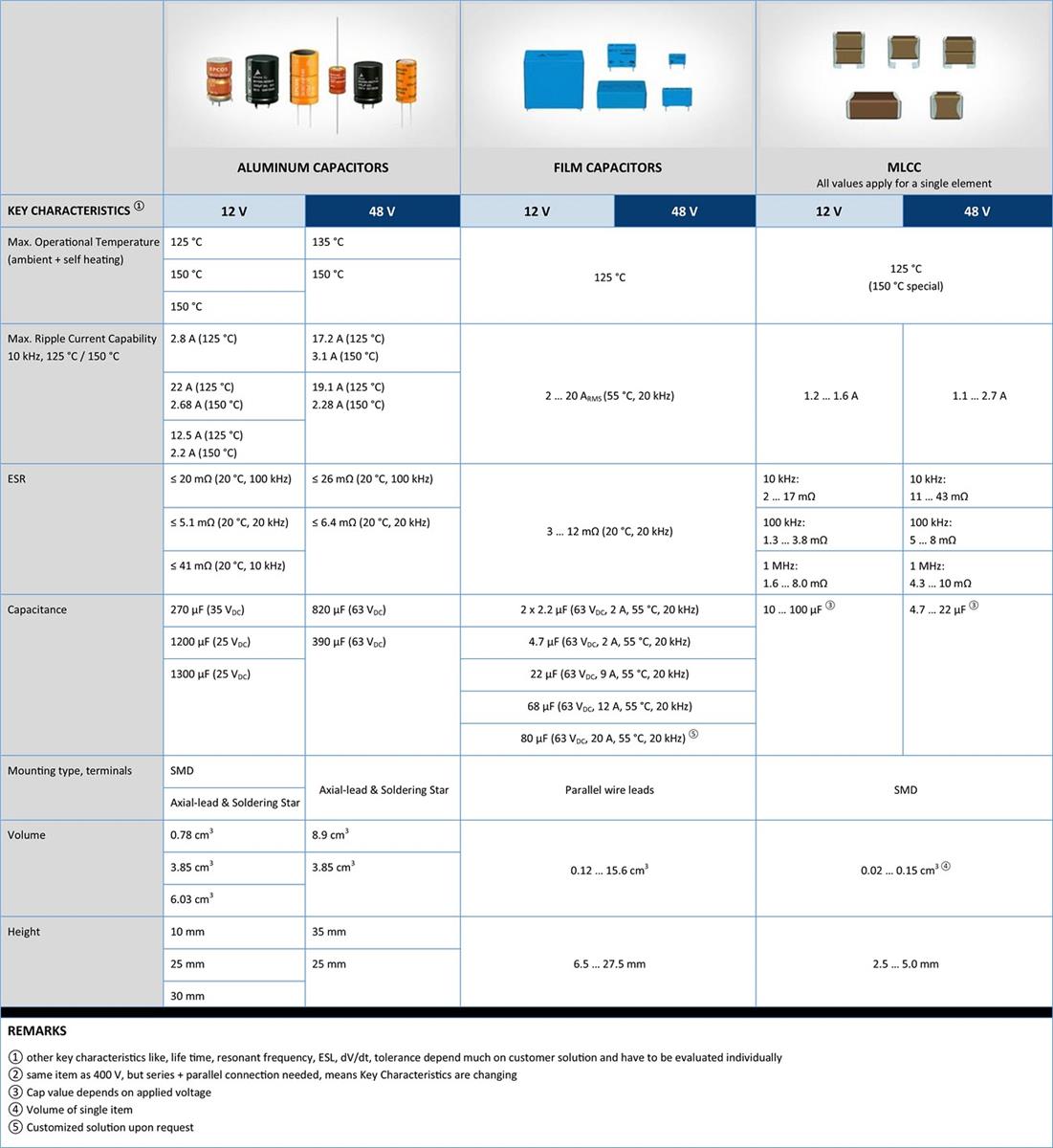

Product Characteristics
Film Capacitors
EPCOS / TDK General Purpose MKT Stacked/Wound Film Capacitors
AEC-Q200D stacked and wound film caps with high pulse strength and high contact reliability
EPCOS / TDK High Density MKP DC Link Film Capacitors
Features capacitance values up to 480μF and good self-healing properties.
EPCOS / TDK B32529 Metallized Polyester Film Capacitors
AEC-Q200D-compliant film capacitors featuring high pulse strength and high contact reliability.
Aluminum Electrolytic Capacitors
TDK B40600 Hybrid Polymer Aluminum Capacitors
High ripple current density up to +150°C and stable internal thermal connection during useful life.
TDK B40900 Hybrid Polymer Aluminum Capacitors
Offers a robust SMD design in hybrid polymer technology in 25VDC / 330µF and 35VDC / 270µF versions.
EPCOS / TDK B41689 & B41789 High Ripple Current Aluminum Caps
25VDC to 63VDC voltage range, 4500µF maximum rated capacitance, and AEC-Q200 reference standard.
MLCCS - SMD
12V
CGA6P3X7S1H106K250AB - Learn More
CKG57NX7R1E107M500JJ - Learn More
48V
CGA6M3X7S2A475K200AB - Learn More
CKG57NX7S2A226M500JJ - Learn More
Learn More
TDK Capacitors for DC‑Link Circuits
Wide range of options & technologies for ideal, cost-effective solutions for DC-Link functions.
