STMicroelectronics VL53L3CX Time-of-Flight Ranging Sensor
STMicroelectronics VL53L3CX Time-of-Flight Ranging Sensor embeds ST's third-generation FlightSense technology. The sensor combines a high-performance proximity and ranging sensor, with multi-target distance measurements and automatic smudge correction. The miniature reflowable package integrates a single-photon avalanche diode (SPAD) array. Physical infrared filters achieve the best ranging performance in various ambient lighting conditions, with a wide range of cover glass windows. The VL53L3CX combines the benefits of a high-performance proximity sensor, with excellent short distance linearity, together with ranging capability up to 3m.
Features
- Fully integrated miniature module
- Emitter: 940nm invisible laser (VCSEL) and its analog driver
- Low-power microcontroller running advanced digital firmware
- Size: 4.4mm x 2.4mm x 1mm
- Fast, accurate distance ranging
- Histogram based technology
- Up to 300cm+ detection with a full field of view (FoV)
- Immune to cover glass cross-talk and fingerprint smudge at long distance with direct ToF
- Dynamic fingerprint smudge compensation
- Short distance, high accuracy linearity
- Multi-target detection and distance measurement
- Typical full FoV: 25°
- Easy integration
- Reflowable component
- Part-to-part or generic shape crosstalk calibration available
- Single power supply
- Works with many types of cover glass materials
- I2C interface (up to 1MHz)
- Xshutdown (reset) and interrupt GPIO to optimize the ranging operation
- C and Linux full set of software drivers for turnkey ranging
Applications
- Service robots and vacuum cleaners (wall following and fast obstacle detection)
- Sanitary (robust user detection whatever the target reflectance)
- Smart buildings and smart lighting (user detection to wake up devices)
- IoT (user and object detection)
- Laser-assisted autofocus (AF): enhances the camera AF system speed and robustness, especially in difficult scenes (low light and low contrast); ideal companion for phase-detection autofocus (PDAF) sensors
- Video focus tracking assistance
Videos
eBook
Development Tools
STMicroelectronics X-NUCLEO-53L3A2 Expansion Board
Demonstration and development platform for the VL53L3CX Time-of-Flight Ranging Sensor.
STMicroelectronics P-NUCLEO-53L3A2 Expansion Pack
Provides an introduction to the VL53L3CX ToF Sensor, combined with the powerful STM32F401RE MCU.
STMicroelectronics VL53L3CX-SATEL Breakout Boards
Daughter boards for the X-NUCLEO-53L3A2 Expansion Board, populated with the VL53L3CX ToF Sensor.
Related Products
STMicroelectronics VL53L7CH Time-of-Flight (ToF) Sensor
Features 90° diagonal FoV and Compact and Normalized Histogram (CNH) innovative data output.
STMicroelectronics VL53L8CH Time-of-Flight (ToF) Sensor
Offers improved performance under ambient light and features a wide 65° diagonal Field of View.
STMicroelectronics VL6180 Time-of-Flight Sensor, Ambient Light Sensor
Allows absolute distance to be measured independent of target reflectance.
STMicroelectronics VL53L1X Time-of-Flight Proximity Sensor
Fast miniature ToF sensor with accurate ranging up to 4m and frequency up to 50Hz.
STMicroelectronics VL53L0X Time-of-Flight Ranging Sensor
Integrated with an embedded infrared, eye-safe laser, advanced filters and photon detection array.

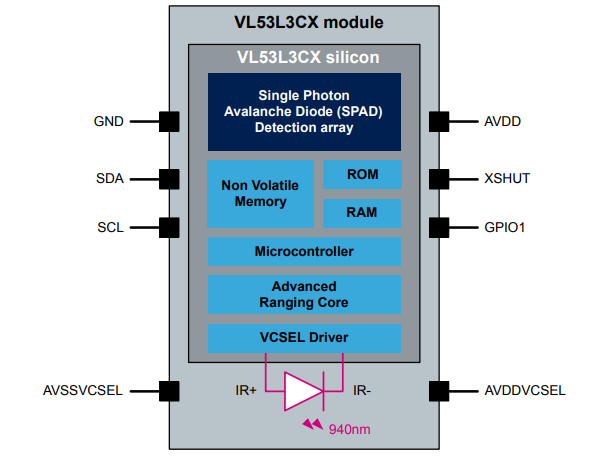

Block Diagram
