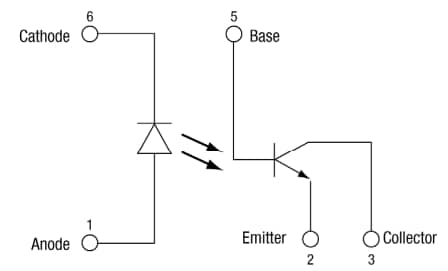

Skyworks Solutions Inc. OLI100 Miniature Phototransistor Optocoupler is designed for hybrid applications that require optical isolation with a high Current Transfer Ratio (CTR) and low-saturation VCE. This optocoupler consists of an LED and an NPN silicon phototransistor mounted and coupled in a miniature custom ceramic package. The OLI100 optocoupler features very low input current making it suitable for direct CMOS to Low Power Schottky Transistor to Transistor Logic (LSTTL/TTL) interfaces. The device is mounted by standard hybrid assembly with nonconductive epoxies. Preferably gold or aluminum wire bonding can be used to make electrical connections for maximum placement flexibility. Typical applications include avionics, biomedical materials, radar, space, surveillance systems, instrumentation, and military communications.
Current transfer ratio guaranteed over -55°C to 125°C ambient temperature range
1500VDC electrical isolation
High current transfer ratio is 100% minimum over temperature
High current transfer ratio at low input current is 100% at IF=1mA over temperature
25μs switching time
High-reliability and rugged construction
CTR-comparable to Darlington output but with low saturation VCE=0.15V typical
Custom package available
Specialty medical instruments
Switching Test Circuit
