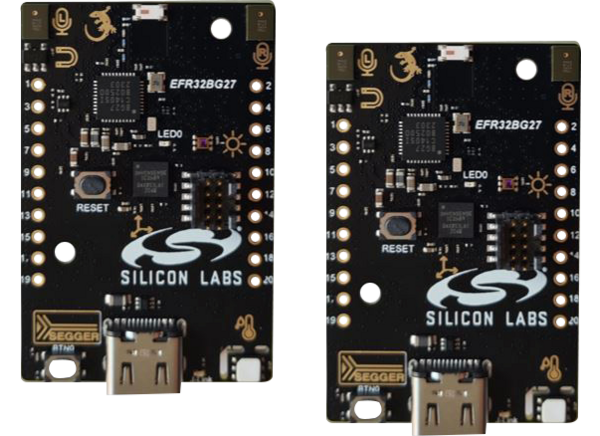

Silicon Labs EFR32xG27 Development Board (xG27-DK2602A)
Silicon Labs EFR32xG27 Development Board (xG27-DK2602A) demonstrates the characteristics of the EFR32xG27 Wireless Gecko SoCs. The EFR32xG27 Wireless Gecko SoCs are single-die solutions combining a 76.8MHz Cortex-M33 with a high-performance 2.4GHz radio to provide energy-efficient, wireless SoCs for IoT-connected applications. The 2.4GHz/+8dBm development board features an onboard debugger, signal breakouts, sensors, and a 16-bit ADC.
Features
- EFR32BG27C140F768IM40 for +8dBm Kit (Buck)
- Wireless SoC with multi-protocol radio
- Cortex-M33, 768kB Flash and 64kB RAM
- Coulomb counter
- On-board debugger
- Expansion and user interfaces
- Breakout pads
- Qwiic connector
- LEDs and push buttons
- Signal breakouts
- 16-bit ADC
- Sensors
- 9-axis inertial sensor
- 2x digital microphones
- Pressure sensor
- Relative humidity and temperature sensor
- UV and ambient light sensor
- Hall-effect sensor
Overview
Additional Resources
Related SoCs
Silicon Labs EFR32xG27 Wireless Gecko SoCs
Wireless SoCs for IoT-connected applications with BLUETOOTH® 5.x or multiprotocol networking.
Related Development Tools
Silicon Labs EFR32xG27 Radio Boards (xG27-RB41x)
Features a Cortex-M33 MCU with 768kB Flash, 64kB RAM, Secure Vault® Mid, & U.FL for RF measurements.
Silicon Labs EFR32xG27 Pro Kits (xG27-PK601xA)
Advanced modular development platform for use with the EFR32xG27 Wireless Gecko SoCs.
