SensiEDGE CommonSense Sony’s Spresense Sensor Board

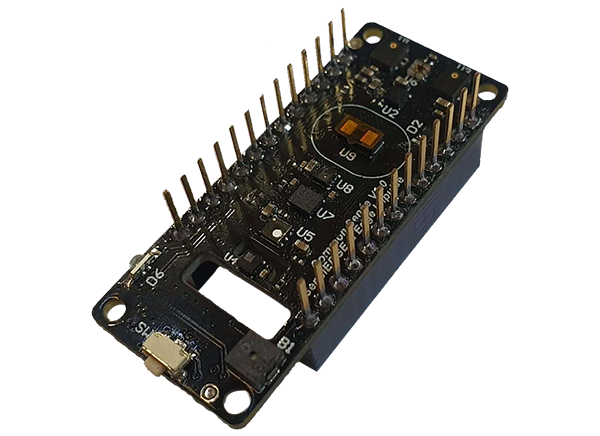

SensiEDGE CommonSense Sony's Spresense Sensor Board consists of the Spresense CXD5602PWBMAIN1C Main Board and a sensor board. The SensiEDGE sensor board consists of sensors and a GPIO expander. CommonSense is Sony's Spresense extension board based on the CXD5602 microcontroller. The button and LEDs are connected to the GPIO expander.
Features
- Sony Spresense CXD5602PWBMAIN1C Main Board
- Sensor board with sensors and GPIO expander
- Button and LEDs connected to GPIO expander
Block Diagram
Board Pinout
Sensors
The SensiBLE module contains these sensors:
▪ STMicroelectronics LSM6DS3 3D Accelerometer and 3D Gyroscope
▪ STMicroelectronics LIS2MDL 3-Axis Magnetometer
▪ STMicroelectronics HTS221TR Humidity and Temperature
▪ STMicroelectronics LPS22HH Pressure Sensor
▪ STMicroelectronics VL53L1X Proximity Sensor
▪ Sensirion SGP-40 Air Quality Sensor
▪ Broadcom APDS-9250 Digital RGB, IR, and Ambient Light Sensor
▪ NXP PCA9538 Port Expander
▪ Kingston SDCS/16 micro SD card
▪ STMicroelectronics M24C32 EEPROM
▪ TI BQ27441DRZR Battery Monitor
▪ Analog Devices Inc. LTC4001EUF Battery Charger
▪ Knowles SPH0645LM4H microphone
Featured Products
Sony Spresense Main Board (China)
Compact Arduino-compatible development board based on the Sony multicore CXD5602 Microcontroller.
STMicroelectronics LIS2MDL Digital Output 3-axis Magnetometer
Features ultra-low-power, high-performance, ±50gauss dynamic range, and 16-bit data output.
STMicroelectronics LPS22HH MEMS Nano Pressure Sensor
Ultra-compact piezoresistive absolute pressure sensor that functions as a digital output barometer.
STMicroelectronics VL53L1X Time-of-Flight Proximity Sensor
Fast miniature ToF sensor with accurate ranging up to 4m and frequency up to 50Hz.
Sensirion SGP40 Indoor Air Quality Sensor
Designed for easy integration into air purifiers or demand-controlled ventilation systems.
Broadcom APDS-9250 Digital RGB IR and Ambient Light Sensor
Uses four channels of red, green, blue and IR (RGB+IR) in a specially designed matrix arrangement.
Texas Instruments bq27441-G1 System-Side Impedance Track Fuel Gauge
Provides system-side fuel gauging for single-cell Li-Ion batteries.
Knowles SP SiSonic™ MEMS Silicon Microphones
Mini, high-performance, low power, top port silicon digital mics that use SiSonic™ MEMS technology.
