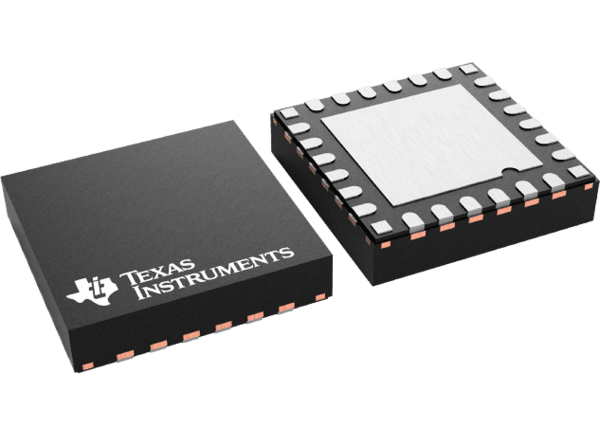

Texas Instruments CDCE6214Q1TM Ultra-Low Power Clock Generator

Texas Instruments CDCE6214Q1TM Ultra-Low Power Clock Generator is a 4-channel, medium-grade jitter clock generator for automotive applications that can generate five independent clock outputs. These outputs are selectable between various modes of drivers. The input source can be a single-ended or differential input clock source or a crystal. The Texas Instruments CDCE6214Q1TM features a frac-N PLL to synthesize unrelated base frequencies from any input frequency.

Features

  • AEC-Q100 qualified for automotive applications
    • Temperature grade 2 (–40°C to +105°C)
  • Functional Safety-Capable
    • Documentation available to aid functional safety system design
  • Configurable high-performance, low-power, frac-N PLL with RMS jitter with spurs (12kHz to 20MHz, Fout > 100MHz) as
    • Integer mode
      • 350fs typical, 600fs maximum differential output
      • 1.05ps typical, 1.5ps maximum LVCMOS output
    • Fractional mode
      • 1.7ps typical, 2.1ps maximum differential output
      • 2.0ps typical, 4.0ps maximum LVCMOS output
  • Supports PCIe Gen1/2/3/4 with SSC and Gen 1/2/3/4/5 without SSC
  • 2.335GHz to 2.625GHz internal VCO
  • Typical power consumption of 65mA for 4-output channel, 23mA for 1-output channel
  • Universal clock input, two reference inputs for redundancy
    • 10MHz to 200MHz differential AC-coupled or LVCMOS
    • 10MHz to 50MHz crystal
  • Flexible output clock distribution
    • Four-channel dividers of up to five unique output frequencies from 24kHz to 328.125MHz
    • Combination of LVDS-like, LP-HCSL, or LVCMOS outputs on OUT0 – OUT4 pins
    • Glitchless output divider switching and output channel synchronization
    • Individual output enable through active-low GPIO and register
  • Frequency margining options
    • DCO mode with frequency increment/decrement with 10ppb or less step-size
  • 100kHz to 1.6MHz fully-integrated, configurable loop bandwidth
  • Single or mixed supply for level translation of 1.8V, 2.5V, and 3.3V
  • Configurable GPIOs and flexible configuration options
    • I2C-compatible interface up to 400kHz
    • Integrated EEPROM with two pages and an external select pin with In-situ programming allowed
  • Supports 100Ω systems
  • Low electromagnetic emissions
  • 24-pin VQFN (4mm × 4mm) small footprint

Applications

  • PCIe Gen 1 - Gen 5 clocking
  • Advanced driver assistance systems (ADAS) - sensor fusion
  • Infotainment and cluster - automotive head unit - eAVB
  • Data center and enterprise computing
  • PC and notebooks
  • Enterprise machine - multifunction printer
  • Test and measurement - handheld equipment

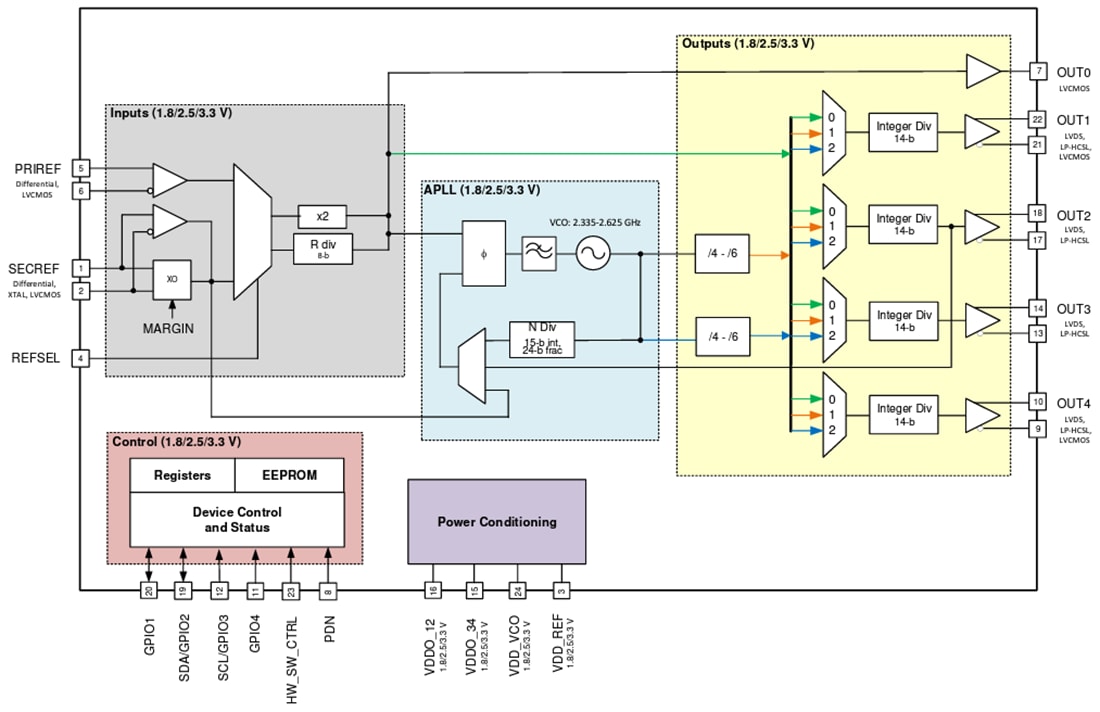

Functional Block Diagram

Block Diagram - Texas Instruments CDCE6214Q1TM Ultra-Low Power Clock Generator
Published: 2023-08-01 | Updated: 2023-09-15
