Samtec Precision RF Connectors & Cable Assemblies

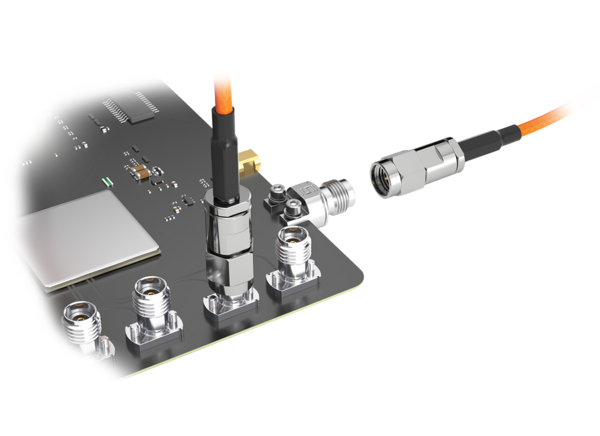

Samtec Precision RF Connectors and Cable Assemblies support microwave/millimeter wave technologies. The 50Ω connectors and assemblies feature high-frequency bands (DC to 110GHz) and provide excellent repeatability and low VSWR. Samtec Precision RF Connectors and Cable Assemblies offer precise electrical and mechanical results and the performance needed to move into the millimeter wave spectrum through 110GHZ.
Features
- Connectors
- 18GHz to 110GHz high-frequency bands
- 1.0mm to 110GHz
- 2.40mm and 1.85mm are intermateable
- 2.92mm cross-mateable to other industry standards (SMA)
- Cable assemblies
- Air dielectric design
- Low VSWR and insertion loss
- Rugged interface for consistent, reliable performance
- Between series and in-series adaptors available
Videos
1.35MM
• View 1.35mm
• Up to 90GHz
• Compression mount, Stripline, or Microstrip
• Solderless vertical launch, field replaceable
• Available with 2-hole flange
1.85mm
• View 1.85mm
• Up to 65GHz
• Air dielectric design for low VSWR and insertion loss
• Low-loss millimeter wave cable assemblies, available on 0.047" or 0.086” cable
• Cable connectors and compression mount board-level interconnects available
• Intermateable with 2.40mm
2.4mm
• View 2.40mm
• Up to 50GHz
• Air dielectric design for low VSWR and insertion loss
• Rugged interface for consistent, reliable performance
• Low-loss millimeter wave cable assemblies, available on 0.047", 0.085", 0.086" and Samtec-optimized cable
• Cable connectors and compression mount board-level interconnects available
• Intermateable with 1.85mm
2.92mm
• View 2.92mm
• Up to 40GHz
• Air dielectric design for low VSWR and insertion loss
• Rugged interface for consistent, reliable performance
• Intermateable with 3.50mm and SMA
3.50mm
• View 3.50mm
• Up to 34GHz
• Air dielectric design for low VSWR and insertion loss
• Rugged interface for consistent, reliable performance
• Intermateable with 2.92mm and SMA
• Cable connectors and high-performance cable assemblies available
SMPM
• View SMPM
• Up to 65GHz
• Miniature footprint, 30% smaller than SMP
• Push-on design for quick, easy mating
• Full detent or smooth bore for varying retention forces
• Bullet adaptor for board-to-board blind mate applications
• Low-loss millimeter wave cable assemblies available
Featured Products
Samtec PRF92 Precision Cable Connectors
2.92mm precision RF interconnects that offer performance up to 40GHz and a 50Ω impedance rating.
Samtec Low Frequency RF Cables & Interconnects
For 50Ω and 75Ω apps with a variety of straight & right-angle jacks, plugs, & bulkhead jacks.
