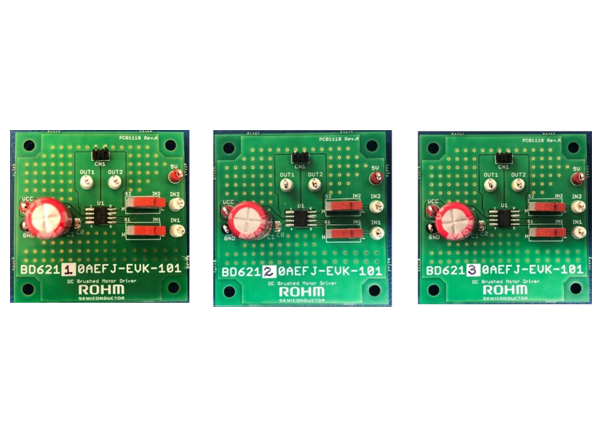

ROHM Semiconductor BD621x0AEFJ Evaluation Boards
ROHM Semiconductor BD621x0AEFJ Evaluation Boards are designed to utilize the BD62130AEFJ (3A), BD62120AEFJ (2A), and BD62110AEFJ (1A) DC Brushed Motor Drivers. The BD621x0AEFJ Evaluation Boards offer built-in, single channel, H-bridge motor drivers for DC brushed motor applications. The drivers deliver high efficiency by a PWM signal directly to input pins.
The ROHM BD621x0AEFJ Evaluation Boards have integrated protection circuits in the ICs, contributing to the high reliability.
Applications
- Small appliances
- Factory Automation
- Robotics
- Point of Sales (POS) machines
- Gaming Machines
- Scanners
- Printers
- DC Brushed Motor
Associated Products
ROHM Semiconductor BD62130AEFJ 36V DC Brush Motor Driver
Reversible 1-channel, H-bridge driver IC optimized for brush motor applications.
ROHM Semiconductor DC Brush Motor Drivers
Reversible driver ICs designed for specifically for brush motor applications.
Operating Conditions
Layouts
Board Setup
Schematic
