Renesas Electronics RA2L1 32-Bit Microcontroller Group
Renesas Electronics RA2L1 32-Bit Microcontroller Group offers ultra-low power with an energy-efficient, 48MHz Arm® Cortex®-M23 CPU, including enhanced peripherals. The RA2L1 MCUs provide a low power operation down to 64uA/MHz in active mode and 250nA in software standby mode. With a 48MHz Arm Cortex-M23 CPU, enhanced capacitive touch sensing unit, 32-bit timer, 12-bit ADC, and a CAN, the device features a high integration level.
The Renesas RA2L1 32-Bit Microcontroller Group enables ease-of-use with a free HAL driver code and development tool support (e2studio, Segger J-link, E2/E2 Lite). A lower BOM cost is achieved with a ±1.0% high accuracy internal oscillator, 1.6V to 5.5V wide voltage range, high current drive, and 5V tolerant IO ports.
The RA2L1 MCUs are available with pin counts ranging from 48 to 100.
Features
- 48MHz Arm® Cortex®-M23
- 128kB/ 256kB Flash Memory and 32kB SRAM (ECC support), 8kB Data Flash
- Scalable from 48-pin to 100-pin packages
- Internal DC-DC converter
- Capacitive Touch Sensing Unit (CTSU2)
- 4-channels of GPT32, 6-channels of GPT16, 2-channels of LPAGT, RTC
- 12-bit ADC, 12-bit DAC, LPACMP
- CAN
- SCI (UART, Simple SPI, Simple I2C)
- SPI/I2C Multi-master interface
Applications
- General purpose
- Home appliances (washer/dryer, dishwasher, refrigerator, cooking range, water heater)
- Industrial automation (digital gauge, sensor, safety module, motor actuator)
- Building automation (HVAC, smoke detector, thermostat, alarm system, lighting)
- Medical & healthcare (high end portable, diagnostics, imaging)
Related Products
Renesas Electronics RA Family Arm® Cortex® Microcontrollers
Scalable Arm® Cortex®-M based MCUs, integrating a wide range of embedded system peripheral IPs.
Renesas Electronics RA2 Family Arm® Cortex® Microcontrollers
Entry-level 32-bit MCUs offering excellent cost, performance, and ultra-low power consumption.
Development Tools
Renesas Electronics RA2L1 Capacitive Touch Evaluation System
An easy to use platform for the RA2L1 MCUS, with simple prototyping and intuitive interface.
Renesas Electronics RTK7EKA2L1S001BE Evaluation Kit
Configured to evaluate the operation of the RA2L1 MCUs.
Additional Resources

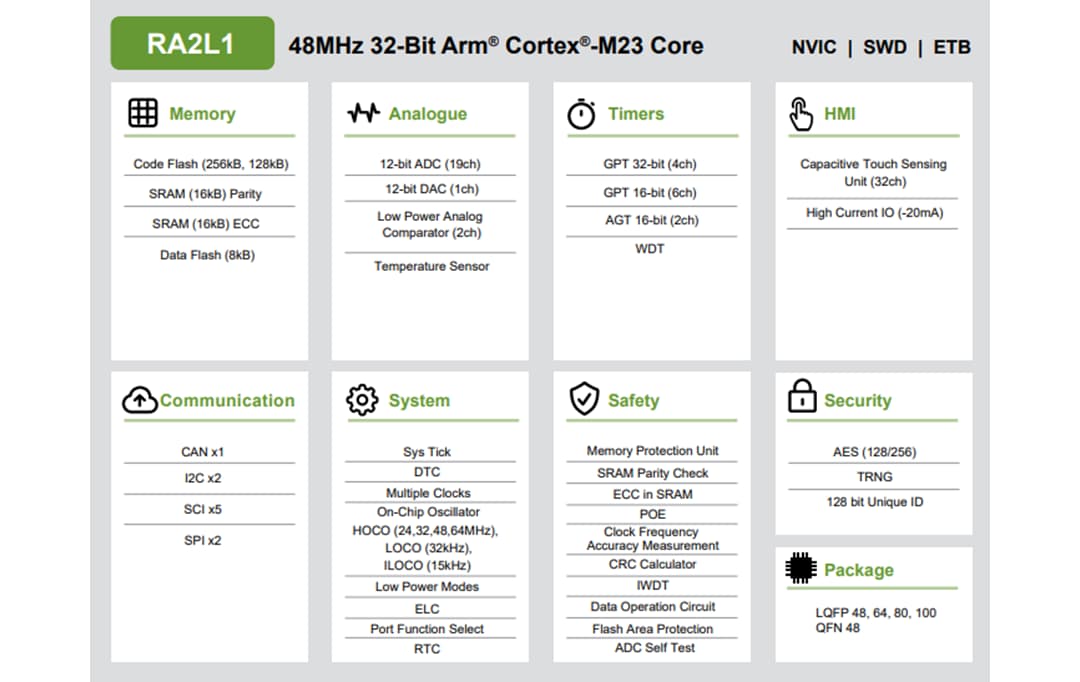

Block Diagram
