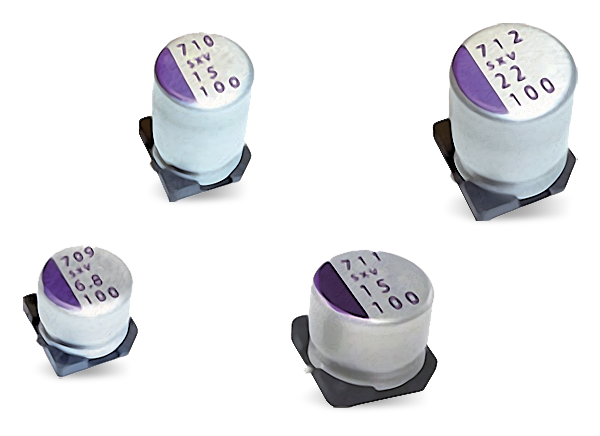

Panasonic SXV Conductive Polymer Aluminum Solid Capacitors
Panasonic SXV Conductive Polymer Aluminum Solid Capacitors are halogen-free surface mount type capacitors with 100VDC maximum voltage. These aluminum solid capacitors include 20% tolerance, 1100mA ripple current, and 12uF capacitance. The SXV polymer capacitors operate at -55°C to +125°C temperature range. Panasonic SXV Capacitors offer 48uA leakage current and 60mΩ Equivalent Series Resistance (ESR).
Features
- Surface mount type
- RoHS compliant
- Halogen-free
- Pb-free compliant
- High voltage
- High reliability
Specifications
- -55°C to +105°C operating temperature range
- ±20% (120Hz / 20°C) capacitance tolerance
- 63VDC to 100VDC rated voltage range
- 2.35A ripple current
- 75uA leakage current
- 40mΩ ESR
SXV Dimension Overview
