Panasonic EXC Common Mode Chokes

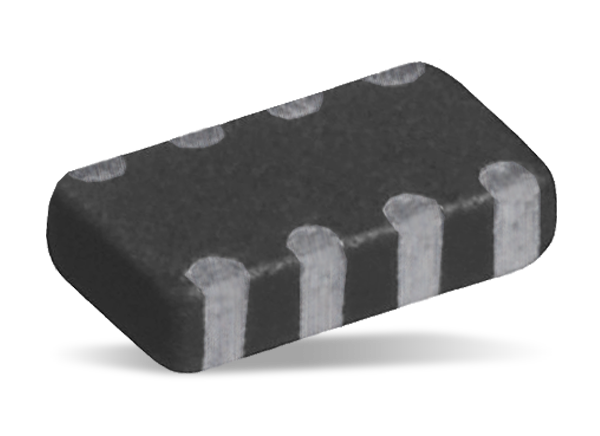

Panasonic EXC Common Mode Chokes are common mode noise filters. Panasonic EXC chokes also include an (electrostatic discharge) ESD suppressor circuit. EXC chokes are ideal for use in smartphones and table PCs. Panasonic EXC chokes are ideal for ESD and noise suppression of high-speed differential data lines, such as MIPI and USB. EXC series features impedance ranging from 12Ω to 1kΩ. The series also provides 50mA to 500mA maximum DC current and 300mΩ to 5Ω maximum DC resistance. These common mode chokes operate over a -40°C to +85°C temperature range.
Features
- Provides electromagnetic interference (EMI) filtering
- CS parts provide ESD suppression
- 12Ω to 1kΩ impedance range
- 50mA to 500mA maximum DC current
- 300mΩ to 5Ω maximum DC resistance
- 20% to 30% tolerance
- -40°C to +85°C operating temperature range
Applications
- Smartphones
- Tablets
- Noise and ESD suppression in MIPI and USB circuits
View EXC Series
Panasonic EXC-16CT Common Mode Noise Filters
Common mode noise filters corresponding to new high-speed differential interface (MIPI C-PHY) specs.
Panasonic EXC-X4CH Common Mode Noise Filters
Small and thin common mode noise filters featuring a cut-off frequency of more than 8.5GHz.
