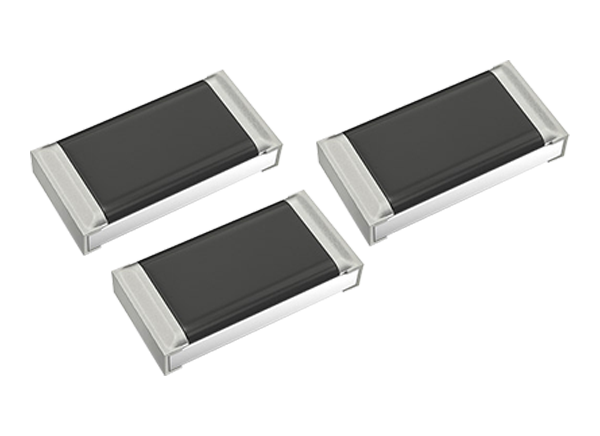

Panasonic Anti-Surge Thick Film Chip Resistors

Panasonic Anti-Surge Thick Film Chip Resistors offer superior ESD surge characteristics when compared to standard metal film resistors. These resistors achieve high-reliability through metal glaze thick film resistive element and three layers of electrodes. The anti-surge thick film chip resistors feature IEC 60115-8, JIS C 5201-8, and JEITA RC-2134C industry reference standards. These thick film chip resistors are AEC-Q200 compliant and RoHS compliant. The anti-surge thick film chip resistors are available in various packages and values.

Features

ESD surge characteristics superior to standard metal film resistors
High-reliability:
- Metal glaze thick film resistive element and three layers of electrodes
Suitable for both reflow and flow soldering
Reference standards:
- IEC 60115-8, JIS C 5201-8, and JEITA RC-2134C
AEC-Q200 compliant

High power:
- 0.20W : 0402inch / 1005mm size (ERJPA2), 0603inch / 1608mm size (ERJP03)
- 0.25W : 0603inch / 1608mm size (ERJPA3)
- 0.50W : 0805inch / 2012mm size (ERJP06), 1210inch / 3225mm size (ERJP14)
- 0.66W : 1206inch / 3216mm size (ERJP08)
RoHS compliant
