Panasonic Electronic Components OS-CON™ Aluminum-Polymer Solid Capacitors
Panasonic OS-CON™ Aluminum-Polymer Solid Capacitors utilize aluminum and a high-conductivity polymer material to offer low ESR, excellent noise reduction, and ripple current capabilities. The OS-CON Aluminum-Polymer Solid Capacitor product line consists of several series (SVP, SVPC, SVPF, SVPE, SEP, SEPC, and SEPF Series) that include products characterized by a long lifespan and minimal changes in ESR throughout the entire rated temperature range. The OS-CON series offers a very low ESR (as low as 5mΩ), capacitance range from 3.3µF to 2700µF, ripple up to 7.2Arms, and voltage range from 2VDC to 100VDC.
Features
- Low ESR (down to 5mΩ)
- Large capacitance (up to 2700µF)
- High-temperature reflow solder capable
- RoHS compliant
Applications
- LED lighting
- PCs and servers
- Set-top boxes
- Audio/video equipment
- FPGA power delivery
- Routers and switches
- Base stations
- Test and measurement
Videos
Additional Resources
Through-Hole OS-CON Capacitors
The SEF Series features high voltage (Max. 35VDC) and large capacitance (Max. 1000μF). The series is ideal for harsh environment applications with a high-temperature rating (up to +125°C). Datasheet
The SEK Series feature a rated voltage range of 25VDC to 50VDC and a +125°C maximum operating temperature at 1k hours. Datasheet
The SEP Series features a capacitance range of 6.8µF to 1500µF with a ±20% tolerance, a voltage range of 2.5VDC to 25VDC, an ESR range of 12mΩ to 80mΩ, and an operating temperature range of -55°C to +105°C. Datasheet
The SEPC Series is designed to have an even lower ESR (5mΩ to 24mΩ) than the SEP Series. The capacitors feature a capacitance range of 100µF to 2700µF, a voltage range of 2.5VDC to 16VDC, an operating temperature range of -55°C to +105°C, and support lead-free flow. Ideal for computer and peripheral products such as motherboards, servers, and VGAs. Datasheet
The SEPF Series is designed as the high voltage version (16VDC to 35VDC) of the SEPC series. The components feature a capacitance range of 22µF to 1000µF with a ±20% tolerance and an operating temperature range of -55°C to +105°C. Ideal for use in high voltage lines such as the input side of DC/DC converters. Datasheet
The SEPG Series is ideal for low-temperature environments and outdoor applications. The series features excellent moisture resistance, a high ripple current, and a low ESR. Datasheet
The SEQP Series features a capacitance range of 6.8µF to 1200µF with a ±20% tolerance, a rated voltage range of 4VDC to 32VDC, and an operating temperature range of -55°C to +125°C. Datasheet
The SXE Series offers a high voltage range from 63VDC to 100VDC, a capacitance range of 6.8µF to 68µF with a ±20% tolerance, and an operating temperature range of -55°C to +125°C. Datasheet
Surface-Mount OS-CON Capacitors
The SVF Series features a capacitance range of 10µF to 1000µF, a voltage range of 16VDC to 50VDC, and an ESR range of 12mΩ to 40mΩ. The series is ideal for harsh environment applications with a high-temperature rating (up to +125°C). Datasheet
The SVP Series features a capacitance range of 3.3µF to 1500µF with a ±20% tolerance, a voltage range of 2.5VDC to 25VDC, an ESR range of 12mΩ to 260mΩ, and an operating temperature range of -55°C to +105°C. The components support lead-free reflow. The series is recommended for SMD needs in switching power supplies. Datasheet
The SVPA Series capacitors are low ESR (19mΩ to 40mΩ) devices with high-rated ripple current. The components feature a capacitance range of 10µF to 820µF with a ±20% tolerance, a voltage range of 2.5VDC to 20VDC, and an operating temperature range of -55°C to +105°C. Datasheet
The SVPB Series capacitors are low profile (5mm Max. height) devices with a high-rated ripple current (up to 2000mArms). The components feature a capacitance range of 15µF to 120µF with a ±20% tolerance, a voltage range of 2.5VDC to 20VDC, an ESR range of 19mΩ to 40mΩ, and an operating temperature range of -55°C to +105°C. Datasheet
The SVPC Series was designed as the larger capacitance version of the SVPA Series. The series reduces the size of equipment and circuits and can support lead-free reflow. The capacitors feature a capacitance range of 39µF to 2700µF with a ±20% tolerance, a voltage range of 2.5VDC to 16VDC, a super low ESR range of 9mΩ to 35mΩ, and an operating temperature range of -55°C to +105°C. Datasheet
The SVPD Series capacitors feature a capacitance range of 8.2µF to 82µF with a ±20% tolerance and a voltage range of 10VDC to 35VDC. This series features an ESR range of 28mΩ to 70mΩ and an operating temperature range of -55°C to +125°C. SVPD capacitors are designed for high-reliability applications, such as automotive, industrial equipment, and more. Datasheet
The SVPE Series is designed to have an even lower ESR (8mΩ to 20mΩ) than the SVPC Series. The series can support lead-free reflow and reduces the size of equipment and circuits. The components feature a capacitance range of 150µF to 1200µF with a ±20% tolerance, a voltage range of 2VDC to 16VDC, and an operating temperature range of -55°C to +105°C. Datasheet
The SVPF Series is the high voltage (16VDC to 50VDC) version of the SVPC Series. The capacitors feature a capacitance range of 10µF to 1000µf with a ±20% tolerance, an ESR range of 12mΩ to 40mΩ, and an operating temperature range of -55°C to +105°C. The series can support lead-free reflow and is ideal for use in high voltage lines such as the input side of DC/DC Converters. Datasheet
The SVPG Series capacitors feature a low ESR (8mΩ to 30mΩ) and a high rated ripple current. The components offer a capacitance range of 15µF to 270µF with a ±20% tolerance, a 16VDC to 25VDC voltage range, and an operating temperature range of -55°C to +105°C. Datasheet
The SVPK OSCON Conductive Polymer Aluminum Capacitors are high voltage, halogen-free SMT devices. The SVPK series offers an operational lifespan of 1000h at +125°C with a voltage range of 25 to 50VDC and a capacitance tolerance of ±20% (120Hz/+20°C). Datasheet
The SVPS Series capacitors feature a longer lifespan than the SVP series and can extend the life of flat-panel TVs. The components offer a capacitance range of 10µF to 680µF with a ±20% tolerance, a 4VDC to 25VDC voltage range, an ESR range of 20mΩ to 220mΩ, and an operating temperature range of -55°C to +105°C. Datasheet
The SVQP Series is designed to offer an endurance (temperature acceleration test) guarantee of 125°C/1000h when the rated voltage applied. The devices offer a capacitance range of 22µF to 220µF with a ±20% tolerance, a voltage range of 4VDC to 20VDC, and ESR range of 35mΩ to 60mΩ, and an operating temperature range of -55°C to +125°C. Datasheet

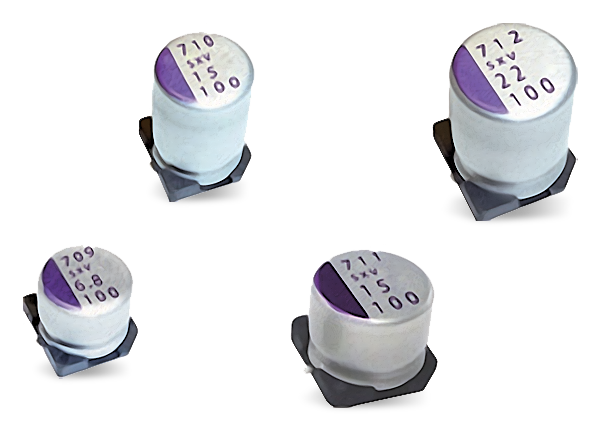

The SXV Series features a super high voltage rating (up to 100VDC), a capacitance range of 10µF to 1000µF, an ESR range of 25mΩ to 60mΩ, and an operating temperature range of -55°C to +125°C. The aluminum-polymer capacitors are suitable for applications used at low temperatures (less than 0°C). The SXV series is highly reliable and ideal for medical, home appliance, telecommunications, and computing applications. Datasheet
