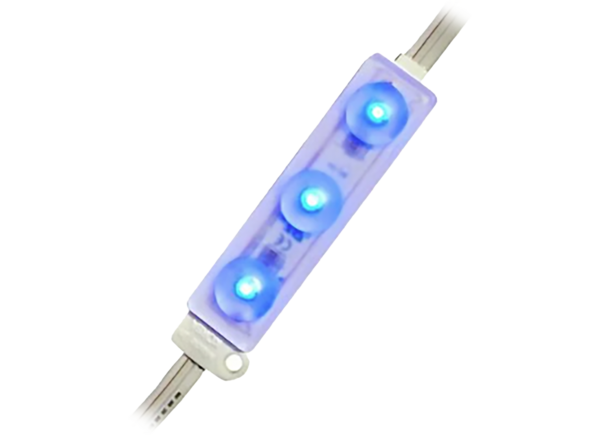

JKL Components ZM-333 LED Channel Modules

JKL Components ZM-333 LED Channel Modules are designed for backlighting shallow sign boxes. The lenses included in these modules provide uniform light distribution to prevent hotspots and shadows. These 170° wide beam angle LED channel modules are available in cool white, blue, and red color options and in 50 module strands. The ZM-333 LED channel modules operate at 12VDC input voltage and -20°C to 70°C temperature range. These modules are RoHS-compliant, UL-approved, and IP67 rated for water resistance. The ZM-333 LED channel modules are used in channel letters, kiosks, retail, gas price signs, pylons, monuments, and car wash signs.


  • 170° wide beam angle
  • 50,000 life hours
  • 12VDC input voltage
  • -20°C to 70°C operating temperature range
  • 50 modules per strand
  • Available in cool white, blue, and red color options
  • Available in high-output option
  • RoHS-compliant
  • UL-approved
  • IP67 rated for water resistance


  • Channel letters
  • Kiosks
  • Retail
  • Gas price signs
  • Pylons
  • Monuments
  • Car wash signs
