Nordic Semiconductor nRF52840 Development Kit
Nordic Semiconductor nRF52840 Development Kit (nRF52840-DK) is a versatile, single-board development tool for Bluetooth® 5.2 / Bluetooth Low Energy, 802.15.4 / Thread, ANT/ANT+, and proprietary 2.4GHz applications using the nRF52840 Multi-Protocol SoC (System on Chip). Hardware-compatible with the Arduino Uno Revision 3 standard, the nRF52840-DK enables designers to use 3rd-party shields that conform to this standard.
The nRF52840-DK supports the standard Nordic tool-chain software using Keil, IAR, and GCC. This development kit also supports Bluetooth mesh and Zigbee. Program/debug options are available for Segger J-Link OB and external target boards. The Development Kit gives access to all I/O and interfaces via edge connectors and features four user-programmable LEDs and buttons. Designers can connect an NFC antenna to enable NFC tag functionality.
Features
- Prototyping and development platform for the nRF52840 Multi-Protocol SoC
- Arduino Uno shield compatible
- ARM mbed enabled
- All I/O and interfaces available at edge connectors
- Segger J-Link OB Program/Debug supported
- RF SMA connector for direct RF measurements
- Includes flex NFC antenna
- NFC tag-A interface and antenna
- Interfaces directly to Nordic Power Profiler Kit
Applications
- Advanced wearables
- Advanced personal fitness devices
- Connected health
- Internet of Things (IoT)
- Connected home sensors and controllers
- Industrial IoT sensors and controllers
- Interactive entertainment devices
- Advanced remote controls
- Gaming controllers
- Virtual/Augmented Reality applications
Videos
Additional Resources
Supported Devices
Nordic Semiconductor nRF52840 Multi-Protocol 2.4GHz SoC
Highly flexible wireless SoC offering BLUETOOTH® 5, ANT, 802.15.4, and 2.4GHz protocols.
Nordic Semiconductor nRF52 2.4GHz SoCs
Runs at 64MHz with a 215 EEMBC Coremark score, 90 Coremark/mA, 39µA/MHz (flash) and 30µA/MHz (RAM).
Skyworks Solutions Inc. SKY66112-11 RF Front End Module
Integrated Front-End Module providing wireless connectivity with ZigBee, Thread, and Bluetooth®.
Nordic Semiconductor nRF7002 Wi-Fi® 6 Companion IC
Provides seamless connectivity and Wi-Fi®-based location (SSID sniffing of local Wi-Fi hubs).
Related Development Tools
Nordic Semiconductor Power Profiler Kit II (PPK2)
Affordable, flexible tool offering power profiling and power optimization of embedded solutions.
Nordic Semiconductor nRF52 Development Kit
Single-board development kit for BLUETOOTH® Smart, ANT, and 2.4GHz proprietary applications.
Nordic Semiconductor nRF52840 USB Dongle
Low-cost, 15 GPIO interfaces, and 2.4GHz supports proprietary applications using nRF5280 SoC.
Seeed Studio Grove Mesh Kit for nRF52840-MDK
Integrates an nRF52840-MDK development board, Base Dock, and easy-to-use Grove Modules.
Qorvo QM33120WDK1 Development Kit
Demonstration and prototyping platform for the low-power QM33110W and QM33120W UWB Transceivers.
Nordic Semiconductor nRF7002 Evaluation Kit
Works with the nRF52840 DK, nRF5340 DK, and nRF9160 DK to evaluate the nRF70 Series.
Board Layout (Front)

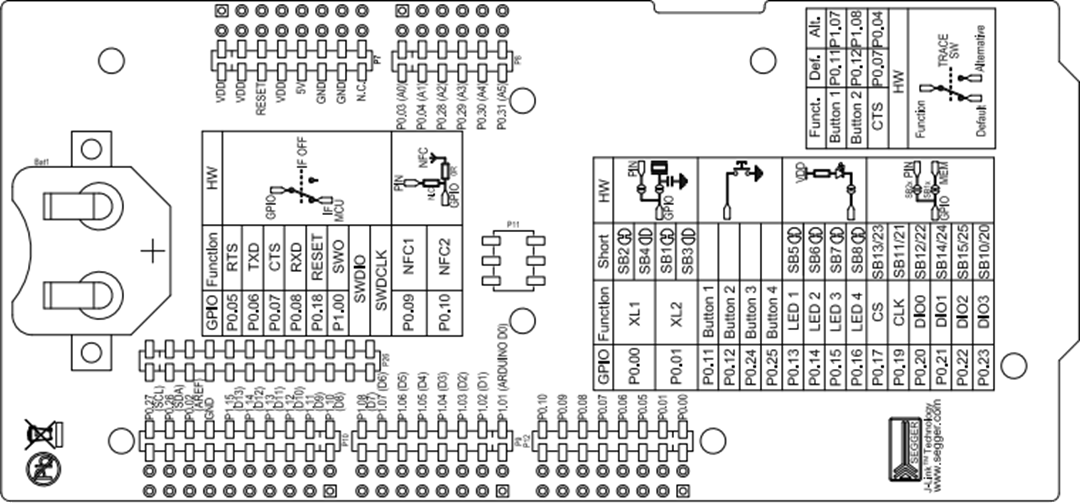

Board Layout (Back)
Block Diagram
