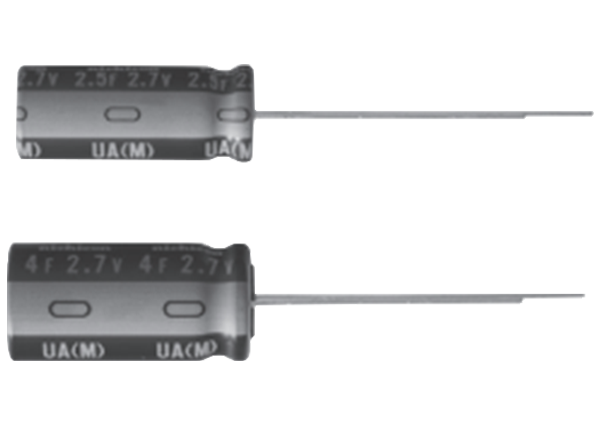

Nichicon JUA EVerCAP® Electric Double Layer Capacitors
Nichicon JUA EVerCAP® Electric Double Layer Capacitors offer a 2.7V rated voltage, 1.2F to 4.7F capacitance range, and ±20% capacitance tolerance. These capacitors feature a load life of 2000 hours at +70°C and a low-temperature range of -40°C to +70°C. Typical applications for Nichicon JUA EVerCAP Electric Double Layer Capacitor include power source backup devices for smart meters and auxiliary power supplies for printers and projectors.
Features
- Lower resistance than JUM series
- Lower temperature range
- Long life
Applications
- Power source backup devices for smart meters
- Auxiliary power supplies for printers and projectors
Specifications
- Load life of 2000 hours at +70°C
- 2.7V rated voltage
- 1.2F to 4.7F capacitance range
- ±20% capacitance tolerance
- -40°C to +70°C temperature range
- Compliant to RoHS directive
Drawing
