New Energy Luminus UV-C Linear LED Modules

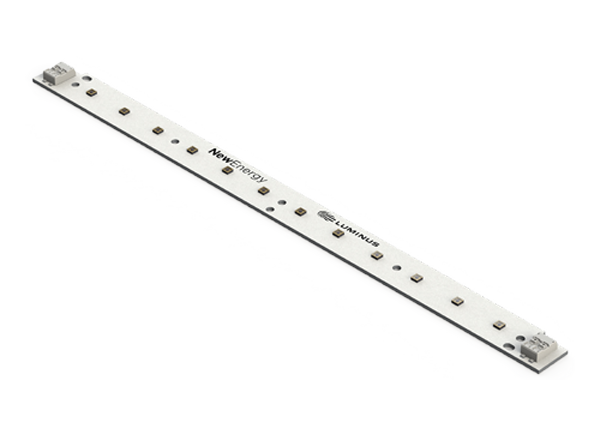

NewEnergy Luminus UV-C Linear LED Modules are 11-inches linear boards that are integrated with 12 Luminus XBT-3535 UV-C high-power LEDs. These LED modules feature an emission wavelength between 275nm to 285nm with a LED viewing angle of 130°. The Luminus UV-C Linear LED Modules offer a wider coverage area and are designed for LEDiL violet 12up UV optic. Typical applications include surface sterilization, water disinfection, air purification, skin therapy, food preparation, horticulture, and fluorescence analysis.
Features
- Integrated with 12 Luminus XBT-3535 UVC power LEDs
- 11-inches linear board with a 0.062-inch thickness
- Emission wavelength between 275nm and 285nm
- LED viewing angle of 130°
- Designed for LEDiL violet 12up UV optic
- 30V to 45V forward voltage
- 1.6A DC current
- 72W power
- RoHS certified
Applications
- Surface sterilization
- Water disinfection
- Air purification
- Skin therapy
- Food preparation
- Horticulture
- Fluorescence analysis
LED Module Overview
Schematic
Mechanical Drawing
Associated Product
Published: 2020-07-29
