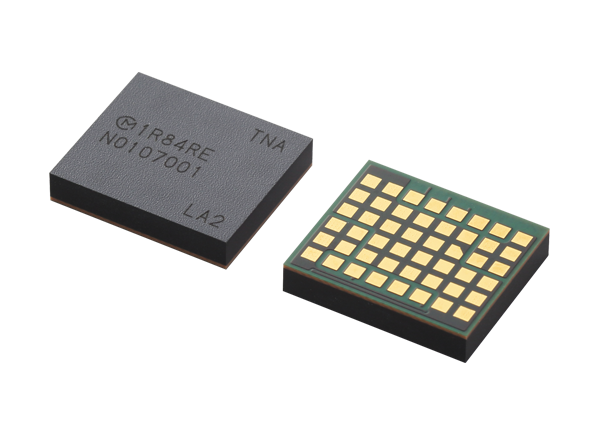

Murata MY Series UltraBK™ 4A/6A DC/DC Converter Modules
Murata MY Series UltraBK™ 4A/6A DC/DC Converter Modules are miniature UltraBK, called "Ultra Block", an ultra-thin high efficiency integrated power solution that combines a 4A or 6A DC/DC converter with components. These totally integrated modules provide up to 90% or 90.5% efficiency in a small, thin LGA package that measures 10.5mm x 9.0mm x 2.1mm. The easy-to-use module terminal design allows a simple power layout and maximum efficiency by minimizing routing parasitic resistance. Other features include power good output, overcurrent and overtemperature protection, remote on / off control, and output voltage sense.
Murata MY Series UltraBK 4A/6A DC/DC Converter Modules are well-suited for use in PCIe / server applications, FPGA and DSP, datacom / telecom systems, distributed bus architectures (DBA), programmable logic, and mixed voltage systems. Some versions can also be used in I2C 6.0-compatible serial interfaces operating up to 1MHz.
Features
- 2-stage buck architecture

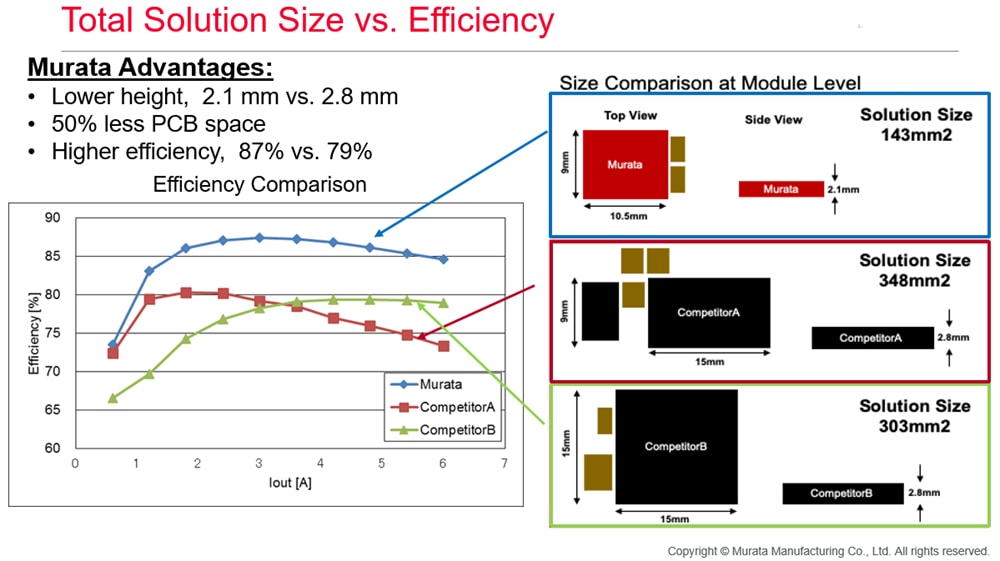

- High efficiency of 90% for 2.1mm height
- Fast transient response

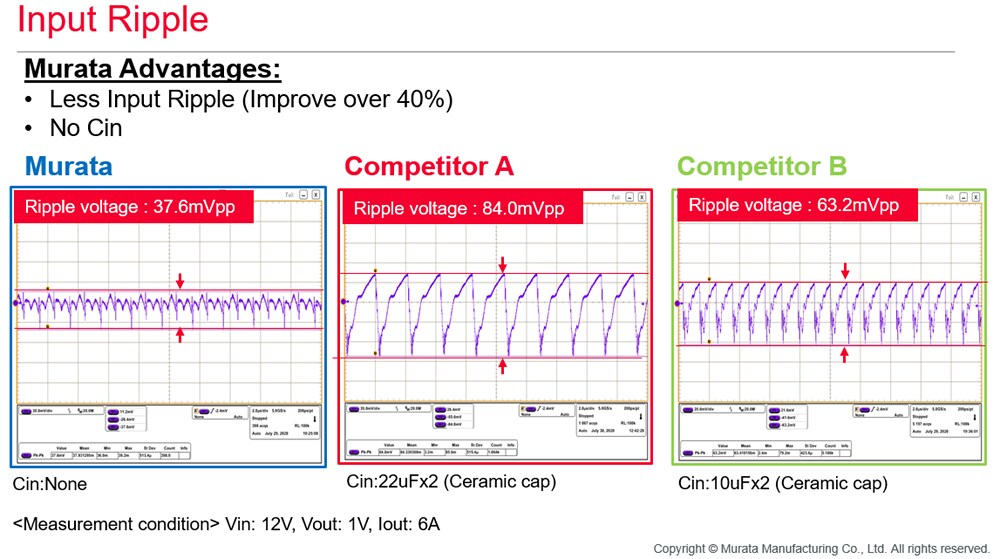

- Low input ripple
- Low EMI
- Output voltage adjust with trim resistor or I2C
- Outstanding thermal derating performance
- Overcurrent protection
- On/off control (positive logic)
- Power good signal
Applications
- PCIe / servers
- FPGA and DSP
- Datacom / telecom systems
- Distributed bus architectures (DBA)
- Programmable logic and mixed voltage systems
- I2C 6.0-compatible serial interface operating up to 1MHz, depending on model
Specifications
- Ultra-thin/small 10.5mm x 9.0mm x 2.1mm LGA package
- Up to 90% or 90.5% efficiency
- Up to 4A or 6A
- 6.0V to 14.4V input voltage range
- 0.7V to 1.8V output voltage
- -40°C to +105°C operating ambient temperature
Murata 2-Stage Solution
Comparison Charts

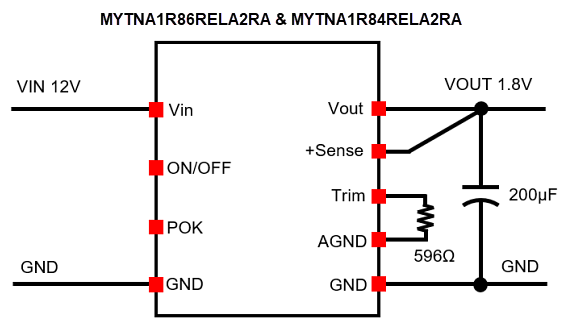

Simplified Application Circuit Diagrams
Videos
Related Converters
Murata Electronics PicoBK™ MYRG DC/DC Converters
Offers a 2.5V to 6.0V input voltage range, 500mA to 2A output current, and up to 94% efficiency.
Murata Electronics MYPMA Non-Isolated DC-DC Converters
Offers a 36V to 75V input voltage range, efficiency up to 95%, and IP56 rating.
Murata Electronics MYMGK MonoBK™ DC-DC Converters
100mA no-load current and 9.6V input voltage rating in a 10.5mm x 9mm x 5.6mm package.
Murata Electronics MYLPW DC-DC Converter
Offers a 18V to 62V input voltage range, 4.5A output current rating, and up to 87% efficiency.
