Molex KK Connectors
Molex KK Interconnection System consists of connectors that form the building block for creating thousands of different configurations. This system offers polarization features that ensure correct mating. The system incorporates offset header entry holes that provide +180°C polarization and allows both power and signal to carry through the same housing. This connector system also enables loading with optional polarization keys and pegs that ensure the one-way mating of headers and housings. Molex KK Interconnection System comes with customizable KK headers that offer more polarization options and design configurations. These include headers with voided pins, customized pin lengths, kinked PC tails, and varying tin or gold plating options.
Molex Reflow Process Compatible (RPC) headers are available in both signal and power applications and handle up to 260°C solder temperature. The signal application KK 254 connectors deliver up to 5A and 250V per circuit in a 2.54mm centerline pitch. The KK 396 connectors deliver 13A and 600V per circuit in a 3.96mm centerline pitch.
Features
- Friction lock headers and friction lock ramp housings
- Polarizing back walls, housings, and pegs
- Kinked PC tails
- Various terminal designs with extra contact points
- Vertical and right-angle headers
- Top, bottom, and right-angle PCB receptacles
- Ensures secure mating
- Prevents mismating
- Ensures good contact with the PCB
- Ideal for high-vibration environments
- Design flexibility
Applications
- Automotive
- Control modules
- Interior lighting
- Side/back window defrosters
- Stereos
- Consumer
- Coin changers
- Fire alarms/smoke detectors
- Gaming machines
- Garage doors
- Home appliances
- Home security
- Lottery machines
- Scoreboards
- Set-top boxes
- Slot and gaming consoles
- Vending machines
- White goods
- Industrial Automation
- Automation equipment
- Data/communications
- Copiers
- Desktop computers and motherboards
- Mainframes
- Multi-function scanners
- Power stations
- Printers
- Workstations
- Medical
- Blanket warmers
- Blood warming bags
- Heart monitors
- Patient monitors
- Pulse oximeters
- Respirators
- Networking
- 1U rack boxes
- Blade servers
- Rack-mount servers
Featured Products
Molex OTS KK 396 Discrete Wire Cable Assemblies
Offers a 600V maximum voltage rating, 3.96mm pitch, and a maximum current rating of 13A.
Molex KK 254 RPC Headers
Delivers up to 5A and 250V per circuit in 2.54mm pitch package and withstands temps up to +260°C.
Molex KK 396 RPC Headers
Delivers up to 13.0A and 600V per circuit and supports a lead-free solder process.
Molex Mini-Latch Wire-to-Board Connector System
Provides a reliable interface for industry-standard 2.50mm wire-to-board applications.
Videos
Design Kits
Molex Design Kits
Convenient, broad range of interconnect kits.

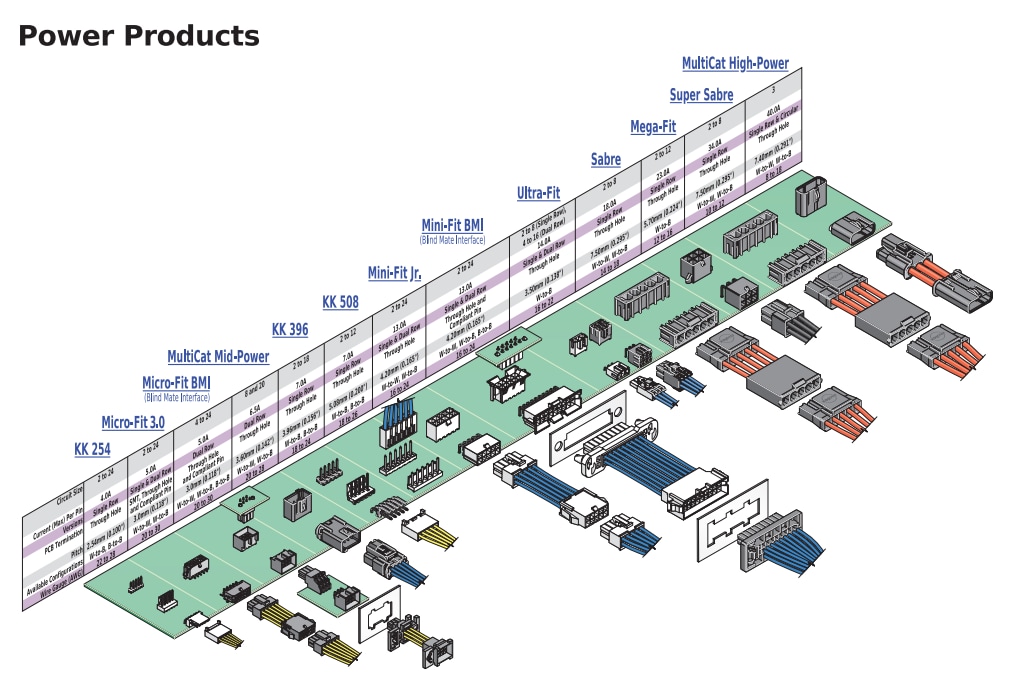

Power Products
