Infineon Technologies BTS50025-1TAD Smart High-Side Power Switch

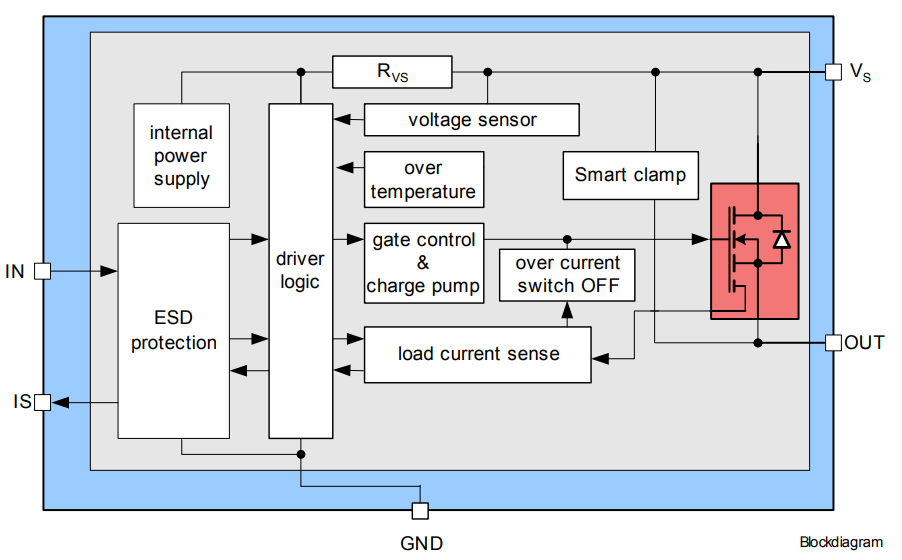

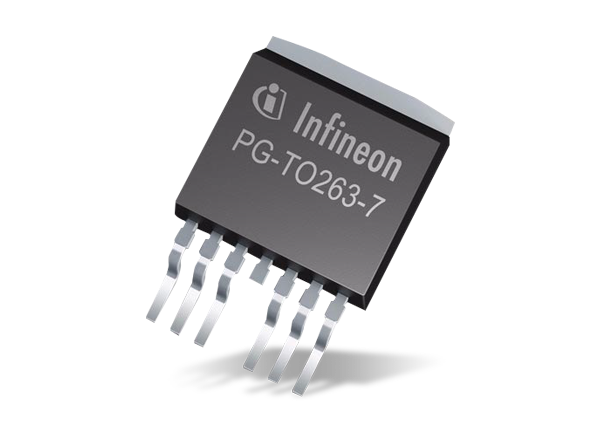

Infineon Technologies BTS50025-1TAD Smart High-Side Power Switch is designed to drive high current loads up to 60A. The high current loads are ideal for automotive applications such as switched battery couplings, power distribution switches, heaters, and glow plugs. The 2.5mΩ single-channel power switch IC comes embedded in a PG-TO-263-7-10 package, providing protective functions and diagnosis. The power transistor is built by a N-channel power MOSFET with charge pump.

Features

1x channel device
Low stand-by current
3.3V to V_S level capable input pin
Electrostatic discharge protection (ESD)
Optimized Electromagnetic Compatibility (EMC)
Logic ground independent from load ground

Low leakage current at OUT pin
Compatible to cranking pulse requirement (test pulse 4 of ISO 7637 and cold start pulse in LV124)
Embedded diagnostic functions
Embedded protection functions
Green product (RoHS compliant)
AEC Qualified

Applications

Suitable for resistive, inductive, and capacitive loads
Replaces electromechanical relays, fuses and discrete circuits
Most suitable for applications with high current loads, such as heating system, main switch for power distribution, start-stop power supply switch
Pulse Width Modulation (PWM) applications with low frequencies
