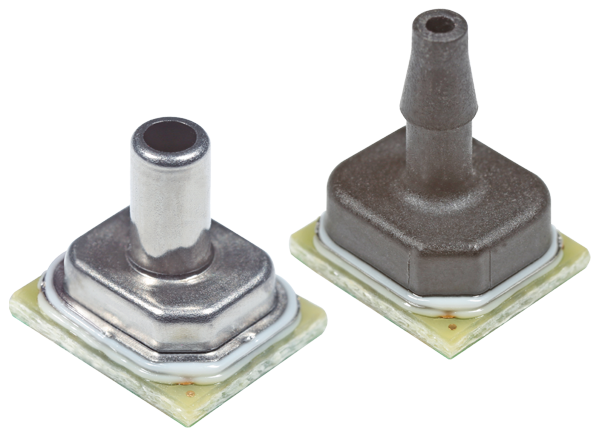

Honeywell ABP2 Board Mount Pressure Sensors

Honeywell ABP2 Board Mount Pressure Sensors are piezoresistive silicon pressure sensors offering a digital output for reading pressure over the specified full-scale pressure span (4bar to 12bar | 400kPa to 1.2MPa | 60psi to 175psi) and temperature range (-40°C to +110°C). Honeywell ABP2 Board Mount Pressure Sensors are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and accuracy errors (which include non-linearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure and temperature are updated at approximately 200Hz. All products are designed and manufactured according to ISO 9001 standards. The liquid-media option includes an additional silicone-based gel coating to protect the electronics under port P1, which enables use with non-corrosive liquids (water and saline) and in applications where condensation can occur.


  • Total error band as low as ±1.5% FSS
  • Liquid media option
  • Compatible with a variety of liquid media
  • ±0.25% FSS long-term stability
  • ±0.25% FSS BFSL accuracy
  • 5mbar to 25bar | 400kPa to 1.2MPa | 60psi to 175psi pressure range
  • High burst pressures
  • -40°C to +110°C operating temperature range
  • Calibrated over the wide temperature range of -40°C to +110°C
  • Basic pressure could use fluorsilicon gel that provides greater media compatibility
  • Dual-port option to measure differential pressures
  • 24-bit digital I2C or SPI-compatible output
  • IoT (Internet of Things) ready interface
  • Ultra-low power consumption (as low as 0.01mW typical average power, 1Hz measurement frequency)
  • Meets IPC/JEDEC J-STD-020E Moisture Sensitivity Level 1
  • REACH and RoHS compliant
  • Food-grade compatible
  • NSF-169-, LFGB-, and BPA-compliant materials
  • Temperature output available
  • Able to withstand high burst pressures
  • Equipped with a sensor mode option the sensor minimizes power consumption


  • Medical
    • Ventilators/portable ventilators
    • CPAP
    • Blood analysis
    • Blood pressure monitoring
  • Industrial
    • HVAC transmitters
    • Life sciences
    • Material handling
    • Pneumatic control and regulation
  • Commercial
    • Air beds
    • Coffee makers
    • Washing machines
    • Level measurement
  • Transportation
    • Air brakes
    • CNG monitoring
    • Fork lifts
    • Fuel-level measurement



Chart - Honeywell ABP2 Board Mount Pressure Sensors
Published: 2020-05-28 | Updated: 2023-04-04
