Excamera Labs I²CMini Evaluation Kits by Excamera
Exacamera Labs I2CMini Evaluation Kits act as a tiny USB to I2C bridge that is compatible with I2CDriver. These evaluation kits feature open hardware, I2C pullups, dual I2C ports, and jumpers. The I2CMini evaluation kits support all I2C features and have a sturdy componentry. These evaluation kits also feature usage reporting and have flexible control. The I2CMini evaluation kits operate at 270mA maximum power out current, up to 25mA device current, and 3.3V output voltage. These evaluation kits also feature 3 pledge packages like I2CMini core, I2CMini expert, and I2CMini gold.
I²CMini Core

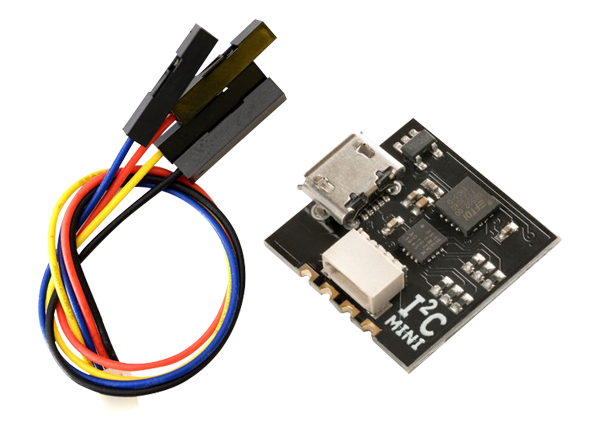

The "Core" package is an I2CMini with a Qwiic connector cable.
I²CMini Expert
The "Expert" package includes three I2CMini modules with Qwiic connector cables, a selection of input and output I2C modules, and two carrier PCBs.
Kit Contents
- 1 x accelerometer
- 1 x 3D compass
- 1 x precision temperature sensor
- 1 x analog twist potentiometer
- 1 x 2-digit 7-segment display
- 1 x color RGB LED
I²CMini Gold
The "Gold" package includes three I2CMini modules with Qwiic connector cables, a complete line of 20 I2C modules, and four carrier PCBs for permanently mounting the modules.
Kit Contents
- 2x accelerometer
- 2x 3D compass
- 2x precision temperature sensor
- 2x IR remote and receiver
- 2x real-time clock/calendar
- 2x 512K-bit EEPROM
- 2x alarm beeper
- 2x analog twist potentiometer
- 2x 2-digit 7-segment display
- 2x color RGB LED
Features
- Open hardware:
- Design, firmware, and all tools are under the BSD license
- I2C pull-ups:
- Programmable I2C pull-up resistors with automatic tuning
- Dual I2C ports:
- A castellated 0.1" header and a Qwiic standard connector
- Jumpers:
- Color-coded Qwiic jumper included for instant connection
- Support all I2C features:
- 7-bit and 10-bit I2C addressing, clock stretching, and bus arbitration
- Sturdy componentry:
- Uses an FTDI USB serial adapter and Silicon Labs automotive-grade EFM8 controller
- Usage reporting:
- Reports uptime, temperature, and running CRC of all traffic
- Flexible control:
- GUI, command-line, C/C++, and Python 2/3 host software provided for Windows, Mac, and Linux
Specifications
- 270mA maximum power out current
- Up to 25mA device current
- 3.3V output voltage
- 400kHz and 100kHz sustained I2C transfer rate
Videos
Associated Driver
Excamera Labs I²CDriver
Easy-to-use, open source tool for controlling I²C devices.
Related Products
STMicroelectronics LIS3MDL 3-Axis Magnetometer
Ultra-low power, high performance, small package, ideal for mobile phones, tablets, and more.
NXP Semiconductors Interface Devices
High-performance devices, including UART portfolio and new generation bridges.
