Epson Timing TG-5006CG Crystal Oscillators

Epson Timing TG-5006CG Crystal Oscillators offer a 13MHz to 52MHz output frequency range and a 3.3 maximum typical supply voltage rating. These oscillators feature high stability and come in three sizes: 2mm x 1.6mm x 0.73mm, 2.5mm x 2mm x 0.8mm, and 3.2mm x 2.5mm x 0.9mm. Epson Timing TG-5006CG Crystal Oscillators are ideal for wireless communication devices, GPS, and RF applications.

Applications

  • Wireless Communication Devices
    • CDMA
    • WCDMA
    • LTE
    • WiMAX
  • GPS
  • RF

Specifications

  • 13MHz to 52MHz output frequency range
  • 1.8V to 3.3V typical voltage range
  • 1.5mA to 2mA maximum current consumption
  • 500kΩ minimum input impedance
  • 0.8V output voltage
  • 10pF output load
  • -30°C to +85°C operating temperature range

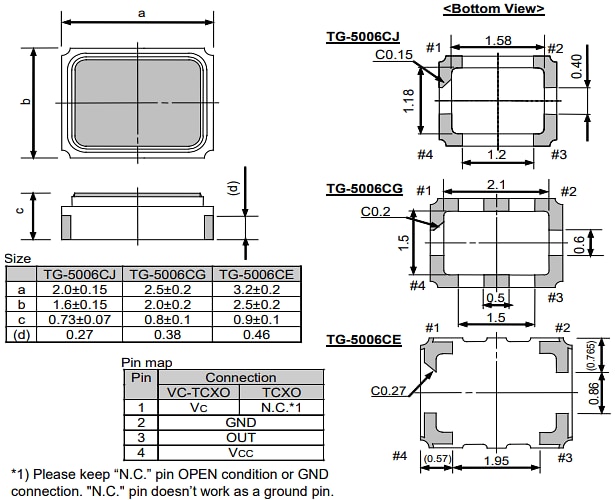

External Dimensions

Epson Timing TG-5006CG Crystal Oscillators
