Kinetic Technologies KTS1688 Evaluation Kit allows users to evaluate the KTS1688 low-on-resistance current source protection load switch with reverse blocking functionality, performance, and PCB layout. The Kinetic Technologies KTS1688 evaluation kit includes a fully assembled and tested PCB with the KTS1688 IC installed, two pairs of high-current XT30-to-banana power cables, and a quick start guide.

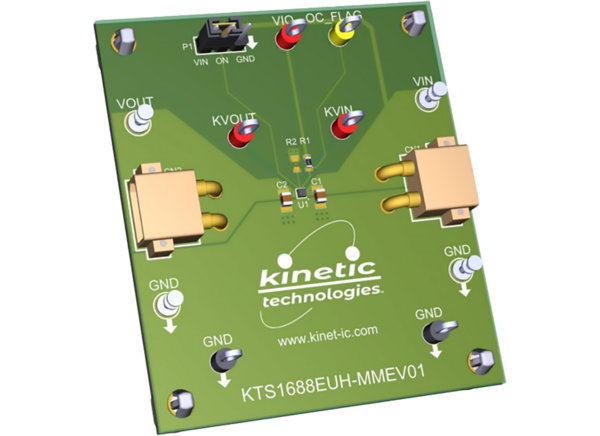

KTS1688 EVAL fully assembled PCB
2x pairs XT30-to-banana power cables, red/black pair
Quick start guide
EVAL kit box
Bench power supply for VIN to 5.0V (or 5.1V) from 1A up to 3A capable, as needed for the intended application
Digital multimeters, one or more, used to measure input/output voltages and currents
