Johnson / Cinch Connectivity Solutions 1.0mm RF Connectors

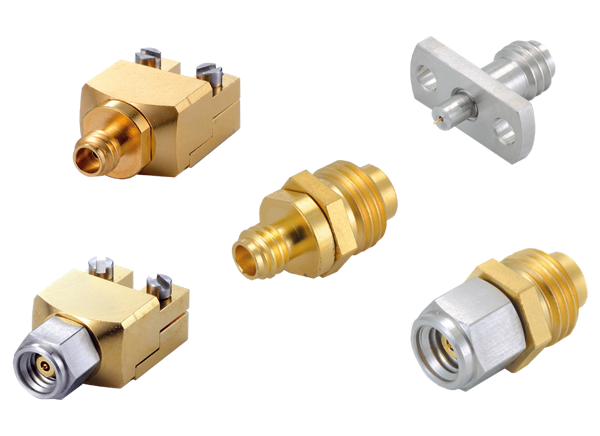

Johnson / Cinch Connectivity Solutions 1.0mm RF Connectors feature end-launch and panel end-launch screw-on style connectors, spark plug connectors, and in-series adapters. These rugged modules offer excellent performance and repeatability, low voltage standing wave ratio (VSWR), insertion loss, and return loss. Johnson / Cinch Connectivity Solutions 1.0mm RF Connectors support 50Ω impedance and a frequency range from DC to 110GHz. The connectors are designed to serve 110GHz (5G) testing requirements for research and development (R&D) lab usage in semiconductor and test and measurement markets.
Features
- 1.0mm interface
- Styles include end-launch, spark plug, panel mount, and adapters
- 110GHz bandwidth
- No soldering required
Applications
- R&D labs
- Semiconductors
- Test and measurement
Specifications
- VSWR: 1.38 max. at 110GHz
- Return loss: 15dB max. from DC to 67GHz; 10dB max. from 67GHz to 110GHz
- Insertion loss: 0.7dB typical
- Durability: 500 cycles min.
