Texas Instruments ESD451 ±30kV ESD Protection Diode
Texas Instruments ESD451 ±30kV ESD Protection Diode is a bidirectional ESD protection diode for protecting data lines and other I/O ports. The ESD451 is rated to dissipate ESD strikes up to ±30kV per the IEC 61000-4-2 international standard (greater than Level 4). This device features a 0.5pF (typical) IO capacitance enabling high-speed interface protection for protocols such as USB 3.0. The extremely low dynamic resistance (0.19Ω) and clamping voltage (10.4V at 16A TLP) are specified for system-level protection against transient events.

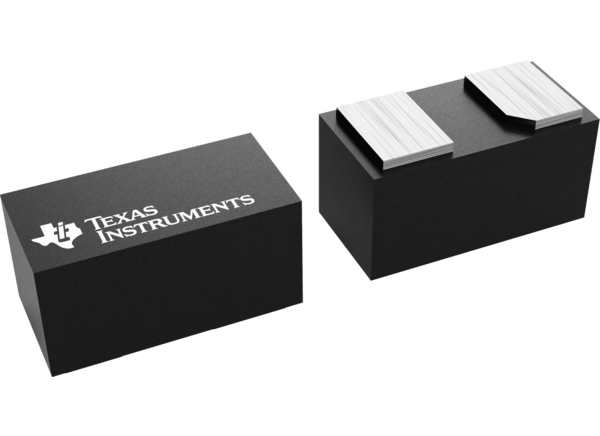

The ±30kV ESD rating and 6.2A surge provide robust transient protection in a tiny package for protecting 5.5V power rails and data lines in portable electronics and other space-constrained applications such as wearables. The Texas Instruments ESD451 is offered in the industry standard 0201 (DPL) package.
Features
- IEC 61000-4-2 level 4 ESD protection
- ±30kV contact discharge
- ±30kV air gap discharge
- IEC 61000-4-5 surge protection
- 6.2A (8/20µs)
- IO capacitance
- 0.5pF (typical)
- 8V (typical) DC breakdown voltage
- 50nA (maximum) ultra-low leakage current
- Extremely low ESD clamping voltage
- 10.4V at 16A TLP
- RDYN is 0.19Ω (I/O to GND)
- 3.5GHz (–3dB bandwidth) low insertion loss
- Supports high-speed interfaces up to 7Gbps
- Industrial temperature range of –55°C to +150°C
- Space-saving industry standard 0201 footprint (0.6mm × 0.3mm × 0.3mm)
Applications
- End equipment
- Vacuum robots
- Wearables
- Smart speakers
- Portable electronics
- Small appliances
- Retail automation and payment
- Laptops and desktops
- TV and monitors
- Docking stations
- Interfaces
- USB 2.0
- HDMI™ 1.4 and 2.0
- DisplayPort™
- SIM card
Additional Resources
Functional Block Diagram
Related Development Tool
Texas Instruments ESDEVM Evaluation Module (EVM)
Comes with all traditional ESD footprints in order to be able to test any number of devices.
