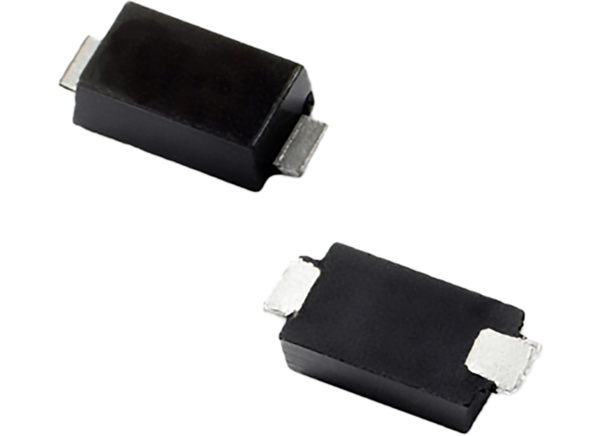

Littelfuse SMF4L-T1G Low Leakage TVS Diodes

Littelfuse SMF4L-T1G Low Leakage Transient Voltage Suppressor (TVS) Diodes are designed to protect sensitive systems or components from high-voltage and high-energy transients. These diodes offer a fast response time of less than 1ns, low Zener impedance, high surge, and good clamping capabilities. The SMF4L-T1G TVS diode features a unidirectional peak reverse voltage ranging from 5V to 78V and a maximum peak power dissipation of 400W. The SMF4L-T1G low leakage diodes are ideal for protecting I/O interfaces, VCC buses, and other vulnerable circuits used in cellular phones, portable electronics, and business machines. The low leakage is particularly well-suited for battery-operated electronics, power supplies, and other industrial and consumer applications.


  • Zener transient overvoltage suppressors
  • Working peak reverse voltage range of 5V to 78V for unidirectional
  • 400W peak power @ 1ms
  • 385mW DC power dissipation @ (TA=25°C)
  • Low leakage
  • Response time is typically <1ns
  • ESD rating of class 3 (>16kV) per human body model
  • -55°C to 150°C operating temperature range
  • IEC-61000-4-2 ESD 30kV (air) and 30kV (contact)
  • Electrical Fast Transients (EFT) rating of 40A per IEC 61000-4-4
  • Small footprint area of 8.45mm2
  • Supplied in 8mm tape and reel (3,000 units per reel)
  • Lead orientation in tape (cathode lead to sprocket holes)
  • Pb-free and RoHS compliant


  • Cellular phones
  • Portable electronics
  • Industrial
  • Consumer
  • Power supplies
  • Business machines
  • Battery-operated electronics

Functional Diagram

Littelfuse SMF4L-T1G Low Leakage TVS Diodes

Performance Graphs

Performance Graph - Littelfuse SMF4L-T1G Low Leakage TVS Diodes

Dimensions Drawing

Mechanical Drawing - Littelfuse SMF4L-T1G Low Leakage TVS Diodes
