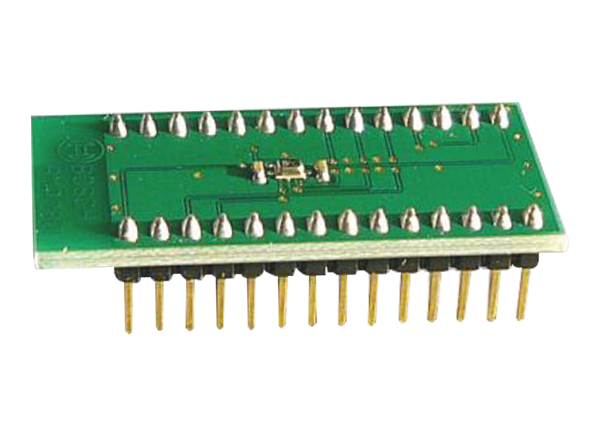

Bosch BMP390 Shuttle Board

Bosch BMP390 Shuttle Board is the evaluation board designed for testing the BMP390 sensor and to be used in conjunction with the application board 3.0. This board uses a simple socket to provide access to the sensor's pins. The BMP390 shuttle board interfaces with an advanced development tool due to an identical footprint with all other sensor shuttle boards.


  • BMP390 barometric pressure sensor
  • Can be plugged into Bosch Sensortec Application Board 3.0
  • Allows sensor pin access via a simple socket

Outline Dimensions

Mechanical Drawing - Bosch BMP390 Shuttle Board
Published: 2021-08-12 | Updated: 2022-03-11
