Apex Microtechnology VRE204 Low Drift Precision Voltage Reference

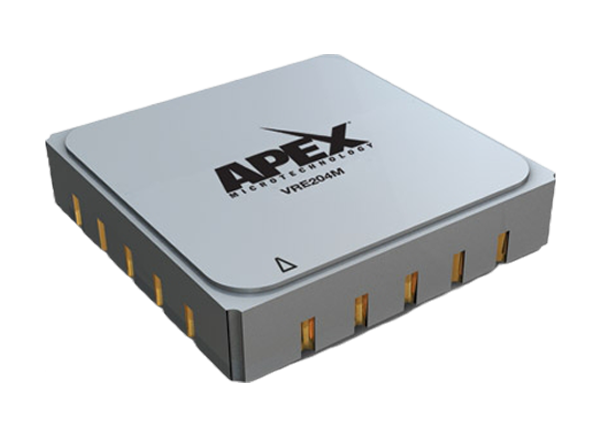

Apex Microtechnology VRE204 Low Drift Precision Voltage Reference provides an ultrastable +4.5V output with up to ±0.8mV initial accuracy. The VRE204 also provides a 1.48ppm/°C temperature coefficient over the full military temperature range. These devices are designed for successive approximation type A/D converters. Specifically an ADC with exceptional temperature drift, which is only as good as the used external reference. The VRE204 combined with the right ADC will provide the lowest drift data conversion obtainable. They are available in the -55°C to +125°C military operating temperature range and two performance grades. The devices are housed in a 20-terminal LCC ceramic package for maximum long term stability. These "M" versions are screened for high reliability and quality.
Features
- +4.5V Output, ±0.8mV high accuracy
- 1.48ppm/°C (-55°C to +125°C) low drift
- 6ppm/1000 hours typical excellent stability
- 6ppm/V typical excellent line regulation
- ±13.5V to ±22.0V wide supply range
- Military processing option
Applications
- Precision A/D and D/A converters
- Transducer excitation
- Accurate comparator threshold reference
- High-resolution servo systems
- Digital voltmeters
- High precision test and measurement instruments
BLOCK DIAGRAM
