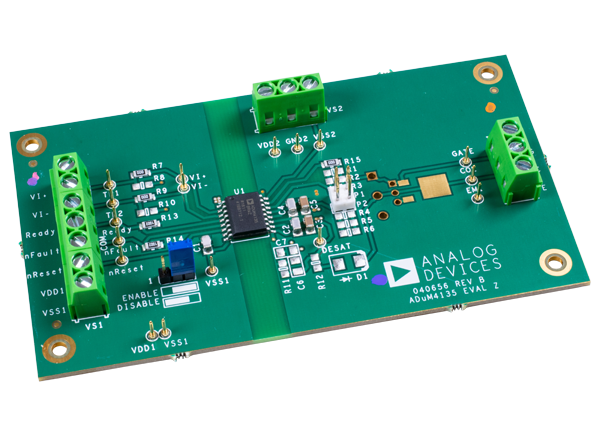

Analog Devices EVAL-ADuM4135 Evaluation Board helps designers evaluate the features of the ADuM4135 single/dual-supply high-voltage isolated IGBT gate driver with an integrated miller clamp. The evaluation board features footprints for insulated gate bipolar transistors (IGBTs) and metal oxide semiconductor field-effect transistors (MOSFETs) in TO-252, TO-220, and 0.100" spaced lead packages. The footprints are also designed to facilitate the evaluation of ADuM4135's desaturation detection, as well as the Miller clamp operation.
4A peak output current
Desaturation protection circuitry
Integrated Miller clamp
CMOS input logic levels
12V to 30V output drive
Supports multiple IGBT/MOSFET footprints
Learn More About
Analog Devices Inc. ADuM4135 High-Voltage Isolated IGBT Gate Driver
Single/dual-supply high-voltage isolated IGBT gate driver with miller clamp.
