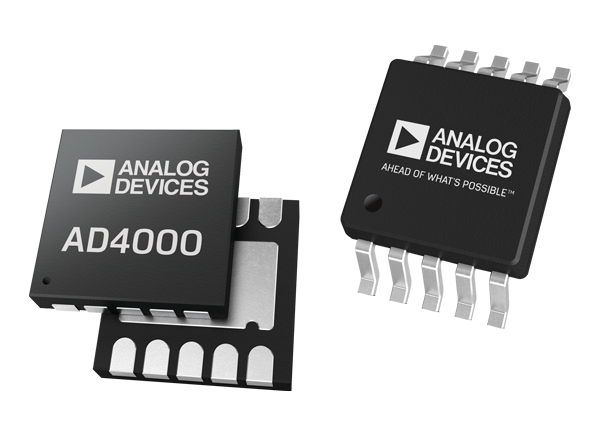

Analog Devices Inc. 16-Bit Pseudo Differential SAR ADCs
Analog Devices Inc. 16-Bit Pseudo Differential Successive Approximation Register (SAR) ADCs feature high accuracy, high speed, and are low power ADCs. The 16-bit SAR ADCs operate at 1.8V single supply operation with 1.71V to 5.5V logic interface. These SAR ADCs with high throughput allows accurate capture of high frequency signals and decimation to achieve high Signal-to-Noise Ratio (SNR). The 16-bit ADCs undergo an ability to daisy-chain ADCs and operate at -40°C to 125°C temperature range. These SAR ADCs include SPI compatible versatile serial interface that features seven programmable modes with an optional busy indicator.
The AD4000/AD4004/AD4008 SAR ADCs are compatible with 1.8V, 2.5V, 3V, and 5V logic that uses a separate supply VIO. Typical applications include automatic test equipment, precision data acquisition systems, machine automation, medical equipment, and battery-powered equipment.
Features
- 2MSPS/1MSPS/500kSPS throughput options
- ±1.0 LSB maximum INL
- Guaranteed 16-bit, no missing codes
- Low power:
- 4.9mW/MSPS, 2.5mW @ 500kSPS, VDD only
- 7mW/MSPS, 70μW @ 10kSPS, and 14mW @ 2MSPS, total
- SNR:
- 93dB typical at fIN = 1kHz, 90dB typical at fIN = 100kHz
- Oversampled SNR:
- 96dB @ 1.0MSPS, OSR = 2
- 123dB @ 1.9kSPS, OSR = 1024
- Total Harmonic Distortion (THD):
- -115dB typical @ fIN = 1kHz, VREF = 5V
- -95dB typical @ fIN = 100kHz
- Signal-to-Noise and Distortion (SINAD) 82dB @ fIN = 1MHz
- Easy drive:
- Greatly reduced input kickback
- Input current reduced to 0.4μA/MSPS
- Long acquisition phase, ≥79% of cycle time at 1MSPS
- Input span compression for single-supply operation
- Fast conversion time allows low SPI clock rates
- Input overvoltage clamp protection sinks up to 50mA
- Greatly reduced input kickback
- Pseudo differential input range:
- 0V to VREF with VREF from 2.4V to 5.1V voltage range
- Single 1.8V supply operation with 1.71V to 5.5V logic interface
- First conversion accurate
- SPI-/QSPI-/MICROWIRE-/DSP-compatible serial interface
- Ability to daisy-chain multiple ADCs
- -40°C to 125°C operating temperature range
- 10-lead packages:
- 3mm x 3mm LFCSP and 3mm x 4.90mm MSOP
- Pin compatible with AD4003/AD4007/AD4011 family
Applications
- Automatic test equipment
- Machine automation
- Medical equipment
- Battery-powered equipment
- Precision data acquisition systems
AD4000/AD4004/AD4008 Functional Block Diagram
Input Current vs. Input Differential Voltage
