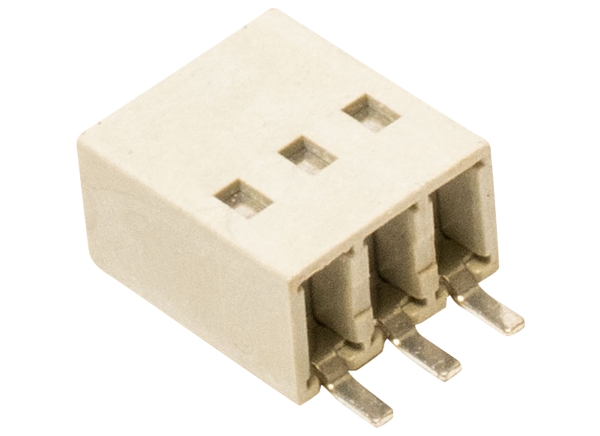

Amphenol Anytek NQ 3.0 Terminal Blocks

Amphenol Anytek NQ 3.0 Terminal Blocks feature an easy-to-install spring clamp system that provides a tool-free application. These compact connectors are 27mm high with SMT termination and come in a neutral color. Amphenol Anytek NQ 3.0 Terminal Blocks support industrial applications, such as power solutions, with a high current rating of 3A for each pin and 250V current voltage. The cable has a cross-section of up to 26AWG and a solid conductor, or a fine strand conductor with ferrule can be inserted into the spring terminal point.


  • Easy-to-install spring clamp system for a tool-free application
  • Compact design with SMT termination
  • Solid conductor can be inserted directly
  • Tape-and-reel packaging


  • LCP housing with phosphor copper and tin-plated spring
  • 250V voltage rating
  • 3A current rating
  • 26AWG to 22AWG wire range
  • 3mm pitch
  • 1 to 3 poles
Published: 2015-06-03 | Updated: 2022-03-11
