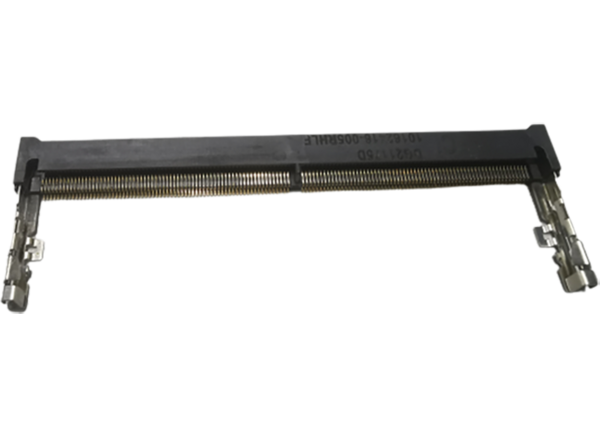

Amphenol FCI DDR5 SO-DIMM Connectors deliver high speed and bandwidth and are only half the size of regular DIMMs. These connectors provide lower power consumption and improved thermal management. The series offers a high-density design with a 0.50mm pitch to save board space. Additional features include 262 positions, vertical or right-angle orientation, and a 4mm to 9.20mm height range. Different key positions aid in alignment and prevent mismating, while SMT mechanical hold-downs ensure co-planarity adjustment during mounting. The liquid crystal polymer (LCP) resin housing material is halogen free and withstands high-temperature IR flow. Typical applications for Amphenol FCI DDR5 SO-DIMM Connectors include communications, industrial and instrumentation, data, and consumer.
High-speed DDR5 digital validation
High-density design of 0.50mm pitch saves board space
Different key positions aid in alignment and prevent mismating
4mm, 5.20mm, 8mm, and 9.20mm height options
Vertical or right-angle orientation
SMT mechanical hold-downs ensure co-planarity adjustment during mounting
LCP, halogen-free, resin housing material withstands high-temperature IR flow
