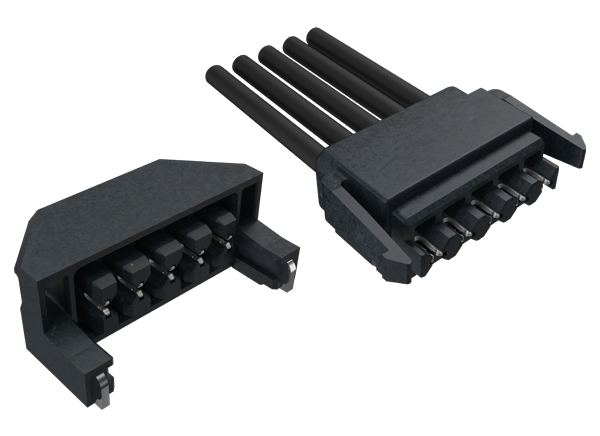

Amphenol FCI Cross-Mate™ 2.00mm Wire-to-Board Connector System

Amphenol FCI Cross-Mate™ 2.00mm Wire-to-Board Connector System offers a compact design and active latching for applications that require good mating retention. The particular cross-section of the mating area guarantees a reliable four-point contact interface with an improved current rating up to 2A per contacts. The Terminal-Position-Assurance (TPA) eliminates the mistake of inserting a wrong contact assembly into the cable housing. A touch-proof feature protects the user from touching powered contacts. The Cross-Mate series is available in 2 to 12 positions per row with horizontal configurations. Typical applications include consumers, industrial and instrumentation, medical, and automotive.

Features

  • Active latch provides reliable connection with board connectors in applications that require good mating retention
  • Current rating up to 2A per contact meets higher power amps performance
  • Terminal-Position-Assurance (TPA) eliminates the mistake of inserting a wrong contact assembly into the cable housing
  • Cross-mating interface: 4 points of contact ensure high reliability even in harsh environments
  • Touch-proof feature protects the user from touching powered contacts
  • Multiple header configurations (vertical and right angle) offer flexibility in applications and designs
  • UL 94V-0 high-temperature thermoplastic housing
  • Copper alloy board connector and crimping terminal, both available with optional tin and gold plating

Applications

  • Consumers
    • Home automation
    • IoT devices
  • Industrial and Instrumentation
    • Power tools
    • Programmable Logic Controllers (PLC)
  • Medical
    • Portable devices
  • Automotive
    • Steering
    • Infotainment
    • Comfort (Electrical seats, internal lighting)
    • Headlights
    • Head-Up Display (HUD) modules

Specifications

  • 100V AC/DC voltage rating
  • 1000MΩ min. insulation resistance
  • 10mΩ max. (initial) contact resistance
  • 2A current rating
  • -25°C to +85°C operating temperature range
  • Durability: 10 cycles
