TPS84250RKGT

Name: Texas Instruments TPS84250RKGT
Brand: Texas Instruments
SKU: 595-TPS84250RKGT
Price: 17.89 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser #:

595-TPS84250RKGT

Mfr. #:

TPS84250RKGT

Description:

Switching Voltage Regulators 7V-50V Inpt, 2.5- Non-Sync Bck,Pwr Sol

Datasheet:

TPS84250RKGT Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

More Information

Learn more about Texas Instruments TPS84250RKGT

Add To Project

Add Notes

Availability

Stock:: 0

Notify me when product is in stock.
You can still purchase this product for backorder.

Shipping Restricted
On Order:: 900

Expected 20-Oct-23
Factory Lead-Time:: 122

Weeks Estimated factory production time for quantities greater than shown.

Long lead time reported on this product.

Minimum: 1 Multiples: 1

Enter Quantity:

Unit Price:

$-.--

Ext. Price:

$-.--

Packaging:

Full Reel (Order in multiples of 250)

Cut Tape

MouseReel™ (+$7.00)

Pricing (USD)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	$17.89	$17.89
	$16.94	$169.40
	$16.20	$405.00
	$14.42	$1,442.00
Full Reel (Order in multiples of 250)
	$12.83	$3,207.50

† $7.00 MouseReel™ fee will be added and calculated in your shopping cart. All MouseReel™ orders are non-cancellable and non-returnable. ↩

Specifications

Products found:

To show similar products, select at least one checkbox

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Texas Instruments
Product Category:	Switching Voltage Regulators
RoHS:	Details
Mounting Style:	SMD/SMT
Package / Case:	B1QFN-41
Topology:	Buck
Output Voltage:	2.5 V to 15 V
Output Current:	2.5 A
Number of Outputs:	1 Output
Input Voltage, Min:	7 V
Input Voltage, Max:	50 V
Quiescent Current:	1.3 uA
Switching Frequency:	300 kHz to 1 MHz
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Series:	TPS84250
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Development Kit:	TPS84250EVM-001
Input Voltage:	7 V to 50 V
Moisture Sensitive:	Yes
Product:	Voltage Regulators
Product Type:	Switching Voltage Regulators
Factory Pack Quantity:	250
Subcategory:	PMIC - Power Management ICs
Supply Voltage - Min:	7 V
Type:	Voltage Converter
Unit Weight:	0.031575 oz

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Documents (10)

Filter Document:

Datasheet

TPS84250RKGT Datasheet

EOL

Product Change Notification (PDF)

Images

Models

TPS84250RKGT Symbol & Footprint by SnapEDA

PCN

Product Catalogs

Power Management Guide 2018 (Rev. R)

SPICE Models

TPS84250 Unencrypted PSpice Transient Model Package (Rev. A)

Show All

Show Less

Environmental Documents

This functionality requires JavaScript to be enabled.

Product Compliance

USHTS:: 8542390001
CNHTS:: 8542399000
CAHTS:: 8542390000
TARIC:: 8542399000
MXHTS:: 8542399901
ECCN:: EAR99

KYOCERA AVX NTC Thermistors are thermally sensitive resistors made from a mixture of Mn, Ni, Co, Cu, Fe oxides. Sintered ceramic bodies of various sizes can be obtained. The thermistors offer excellent batch-to-batch product characteristics due to strict conditions of mixing, pressing, sintering and metallization. High sensitivity and low cost make KYOCERA AVX NTC thermistors the most common device used for temperature measurement.

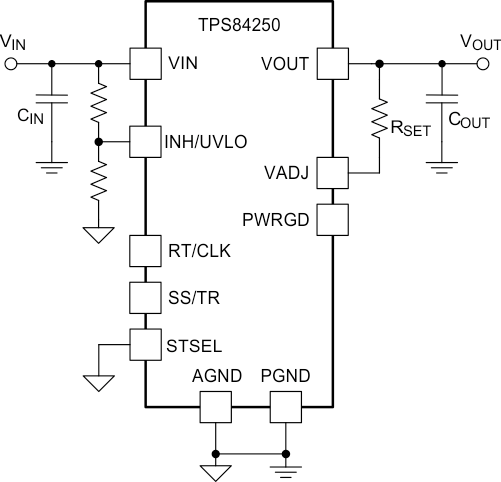

TPS84250 / TPS84259 Integrated Power Solutions

Texas Instruments TPS84250 / TPS84259 Integrated Power Solutions are easy-to-use total power solutions that allow as few as five external components and eliminate the loop compensation and magnetics part selection process. TI TPS84250 step-down power solution combines a 2.5A DC/DC converter with an inductor and passives. This device is ideal for powering a wide range of ICs and systems. TPS84250 has a wide input voltage range from 7V to 50V with output adjustable from 2.5V to 15V. TI TPS84259 negative output voltage power module combines a 15W DC/DC converter with an inductor and passives. This device is ideal for powering a wide range of ICs and analog circuits requiring a negative output voltage. TPS84250 has a wide input voltage range from 4.5V to 40V with output adjustable from -3.0V to -17V.
